Product Overview

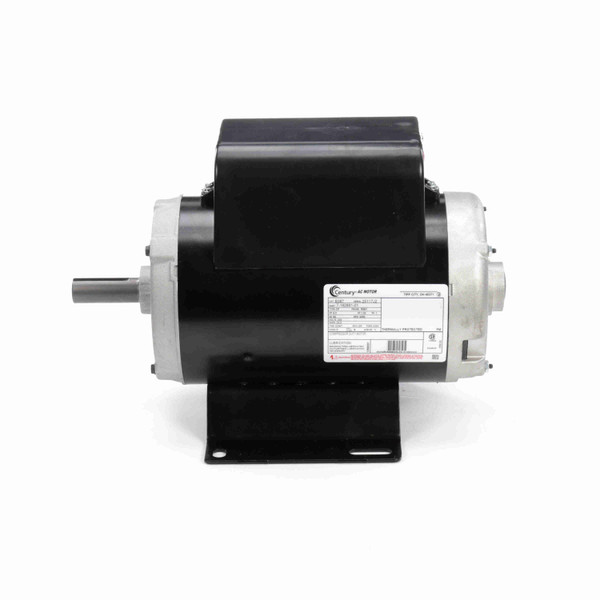

Century B387 6.0 HP Air Compressor Motor 1 phase 3600 RPM 230V 56Y Frame
- UL recognized component listing and CSA certification ensures the product is safe for use.
- High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
- Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
- Heavy-duty construction ensures motor durability.
General Specifications
| UPC: | 786674012432 | Weight: | 53.00 LB |
| Packaged Length: | 19 IN | Packaged Width: | 12 IN |
| Packaged Height: | 10 IN |
Nameplate Specifications
| Output HP: | 6.0 Hp | Output KW: | 4.5 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 24.0 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | F |
| Frame: | R56Y | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start, Capacitor Run, Single Or Dual Voltage | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Clockwise |
| Mounting: | Rigid Base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 14.56 in |
| Frame Length: | 8.75 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.31 in |
