Product Overview

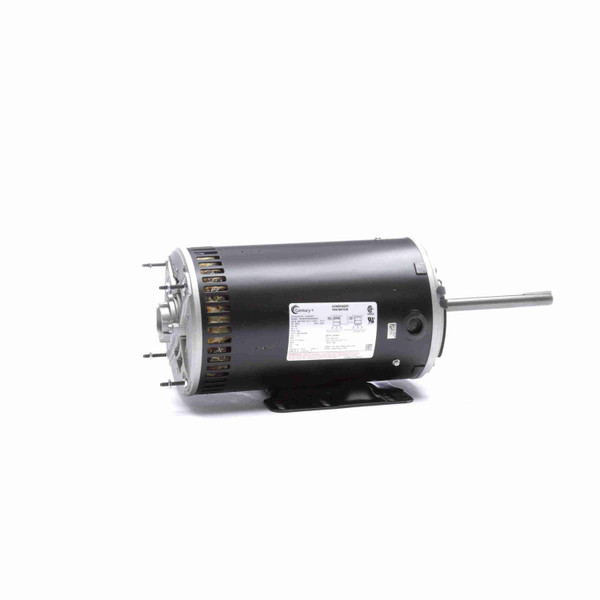

Century H1054AV1 JuggerNaut Condenser Fan Motor 1.5 &1 HP 3 Ph 60 Hz 208-230/460&190/380 V 900 RPM 56HZ Frame
KEY FEATURES
- Automatic reset thermal protector prevents overheating.
- Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
- Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
- Vertical/horizontal mounting for proper placement of the fan within airflow.
Nameplate Specifications
| Phase: | 3 | Output HP: | 1.5&1 Hp |
| Output KW: | 1.1 kW | Voltage: | 208-230/460&190/380 V |
| Speed: | 850&705 rpm | Service Factor: | 1 |
| Frame: | 56HZ | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 70 °C |
| Frequency: | 60 Hz | Current: | 6.6-6.6/3.3&6.0/3.0 A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Three Phase | Starting Method: | Across The Line |
| Poles: | 8 | Rotation: | Reversible |
| Mounting: | Rigid Base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 18.85 in |
| Frame Length: | 8.75 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 6 in |
General Specifications
| UPC: | 786674074096 | Weight: | 50.00 LB |
| Packaged Length: | 22 IN | Packaged Width: | 12 IN |
| Packaged Height: | 12 IN | HTC: | 8501.52.4000 |
| Country of Origin: | Mexico |
