Product Overview

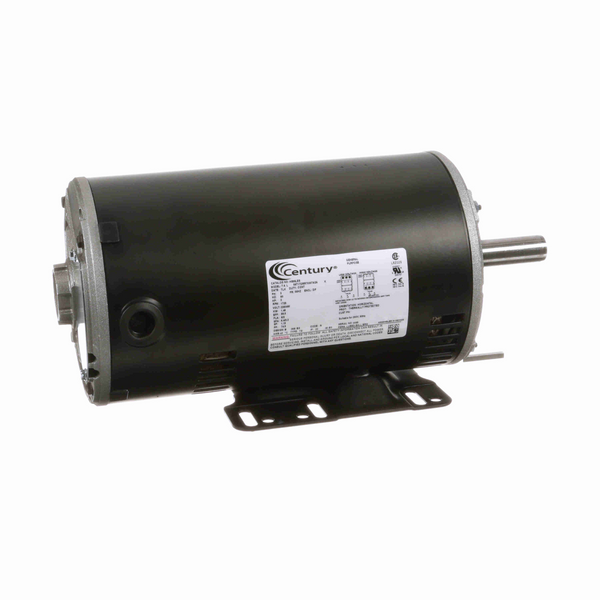

Century H886LES General Purpose Motor 2 HP 3 Ph 60 Hz 230/460 V 1800 RPM 56HZ Frame
KEY FEATURES
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
- Premium efficiency promotes improved reliability.
- Heavy-duty, rolled steel construction ensures motor durability.
- Permanently lubricated sealed bearings extend the lifetime of the motor.
- Downloads:
- UH886LES Data Pack
General Specifications
| UPC: | 786674074201 | Weight: | 60.00 LB |
| Packaged Length: | 16 IN | Packaged Width: | 8 IN |
| Packaged Height: | 10 IN | HTC: | 8501.52.4000 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 2 Hp | Output KW: | 1.5 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 6/3 A | Speed: | 1725 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 56HZ | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | Y | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Three Phase | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Rigid Base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 14.85 in |
| Frame Length: | 10.15 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.25 in |
