Product Overview

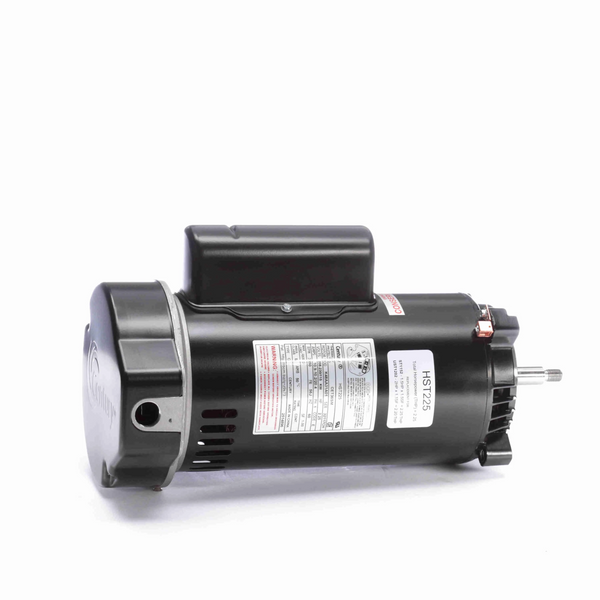

Century HST225 Centurion PRO Motor Pool Pump Motor 2.25 HP 1 Ph 60 Hz 230/208/115 V 3600 RPM 56J Frame ODP
Unable to sell or install this product in New York or California.
KEY FEATURES
- Premium Sealed 203 Bearings Both Ends
- Open & Accessible Terminal Board & Wiring Compartment For Easy Installation
- New Triple Seal Protection on Pump-End Bearing
- Voltage Change Device
- Definitive Shaft Access (7/16" Wrench)
- UL 1081 Design
- 50°C Ambient
- 303 Stainless Steel Shaft
- Centurion PRO
Nameplate Specifications
| Phase: | 1 | Output HP: | 2.25 Hp |
| Output KW: | 1.7 kW | Voltage: | 208-230/115 V |
| Speed: | 3450 rpm | Service Factor: | 1 |
| Frame: | 56J | Enclosure: | Open Drip Proof |
| Thermal Protection: | Automatic | Ambient Temperature: | 50 °C |
| Frequency: | 60 Hz | Current: | 10.9-10.2/20.4 A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Poles: | 2 |
| Rotation: | Counterclockwise Pump End | Mounting: | Round |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | 7/16 THREADS | Overall Length: | 16.24 in |
| Frame Length: | 9.50 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2.562 in |
General Specifications
| UPC: | 786674070319 | Weight: | 32.00 LB |
| Packaged Length: | 19.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 9.00 IN | Country of Origin: | Thailand |
