Product Overview

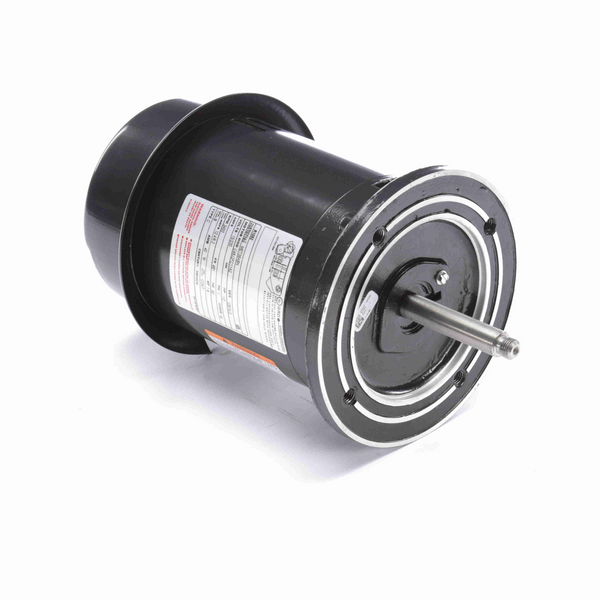

Century R1072ES General Purpose Pump Motor 3/4 HP 1 Ph 60 Hz 230/115 V 3600 RPM 48Y Frame
KEY FEATURES
- Auto protector
- Sealed switch design
- 303 stainless steel threaded shaft
- Downloads:
- R1072ES Data Pack
General Specifications
| UPC: | 786674029362 | Weight: | 21.00 LB |
| Packaged Length: | 19 IN | Packaged Width: | 10 IN |
| Packaged Height: | 9 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 3/4 Hp | Output KW: | 0.56 kW |
| Frequency: | 60 Hz | Voltage: | 230/115 V |
| Current: | 7.4/14.8 A | Speed: | 3450 rpm |
| Service Factor: | 1.65 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 48Y | Enclosure: | Open Drip Proof |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | No | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Counterclockwise Pump End |
| Mounting: | Round | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Threaded | Overall Length: | 15.91 in |
| Frame Length: | 6.25 in | Shaft Diameter: | 0.615 in |
| Shaft Extension: | 5.78 in |
