Product Overview

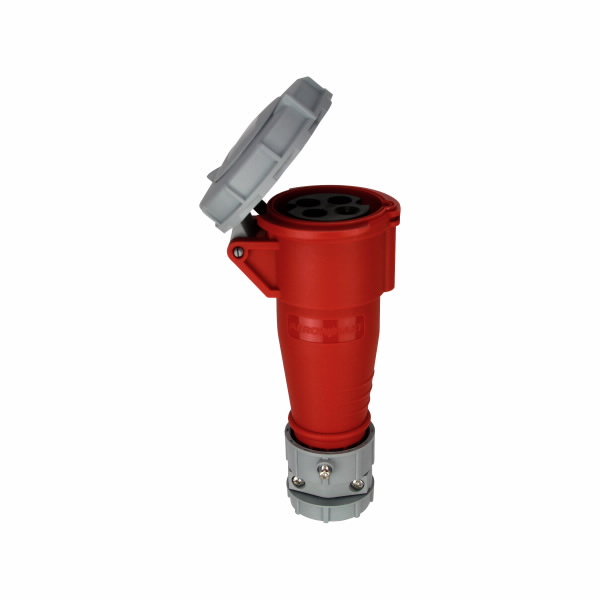

Eaton Wiring Devices AH420C7W Conn Pin&Sleeve 20A 480V 3PH 3P4W WT RD
Eaton Arrow hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, 5 HP, Nylon, Three-phase
Eaton's Arrow Hart full line of pin and sleeve devices offer sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance, and watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.
| Allowable Wire Size | #12-10 AWG |
| Amperage Rating | 20 A |
| Application | Industrial, food and beverage, wastewater treatment |
| Color | Red |
| Contact Material | Nickel plated brass |
| Cord Diameter | 0.333-0.775in (0.85-1.97cm) |
| Design Type | Pin and sleeve connector |
| Environmental Resistance | IP67 | IP69K |
| Face/Body Material | Nylon |
| Gender | Female |
| Horsepower | 5 hp |
| Material | Nylon |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 | Grounding |
| Phase | Three-phase |
| Special Features | Connecctor |
| Torque rating | 10 lbf-inch |
| Type | Connector |
| Voltage Rating | 480 V |
| Length | 8.5 IN |
| Width | 4.375 IN |
| Height | 4.375 IN |
| Volume | 162.695 CI |
| Weight | 0.749 LB |
| Length | 8.5 IN |
| Width | 4.375 IN |
| Height | 4.375 IN |
| Weight | 0.749 LB |
