Product Overview

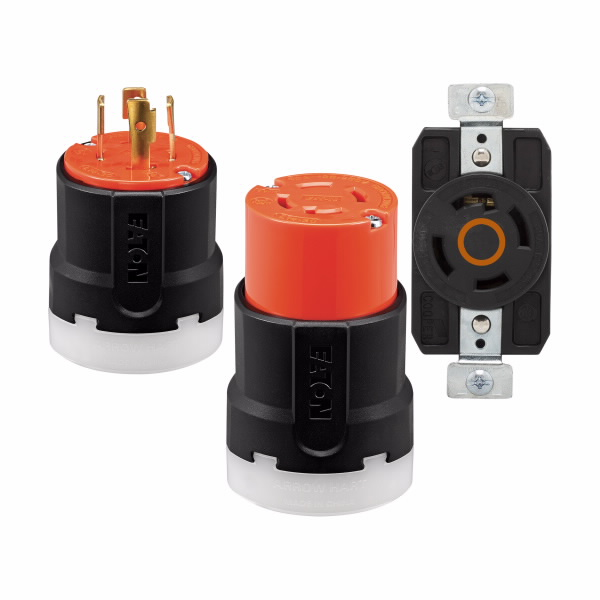

Eaton Wiring Devices AHCL1420R CCL Recp 20A 125/250V 3P4W OR&BK
Eaton Arrow Hart Color Coded Locking Receptacle, #14-8 AWG, 20A, Industrial, 125/250V,Orange, Black, Ultra grip, Glass filled Nylon, L14-20, Three-pole, Four-wire, Glass-filled Nylon, -40°C (w/o impact) to 70°C (-40°F to 158°F)
Eaton’s Arrow Hart color coded locking devices are an industry-first solution that adds six voltage rating color codes consistent with IEC 60309 standards to locking plugs, connectors, inlets, outlets and receptacles to provide you a quick, clear and easy way to identify your circuit voltage. Available in standard NEMA configurations for 20A and 30A applications, the devices ensure long-lasting, dependable service in the most demanding environments, are built with a contemporary flare and ergonomic design for a comfortable yet secure feel and offer excellent reliability and durability.
| Allowable Wire Size | #14-8 AWG |
| Amperage Rating | 20 A |
| Application | Industrial |
| Color | Orange | Black |
| Design Type | Ultra grip |
| Face/Body Material | Glass filled Nylon |
| Material | Glass filled nylon |
| Nema Configuration | L14-20 |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 |
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Special Features | Voltage Color Coding |
| Torque rating | 20 lbf-inch |
| Type | Locking Receptacle |
| Voltage Rating | 125/250 V |
| Wiring Method | Back and side |
| Length | 1.62 IN |
| Width | 1.06 IN |
| Height | 3.64 IN |
| Volume | 6.251 CI |
| Weight | 0.33 LB |
| Length | 1.8 IN |
| Width | 1.8 IN |
| Height | 4.5 IN |
| Weight | 0.33 LB |
|
