Product Overview

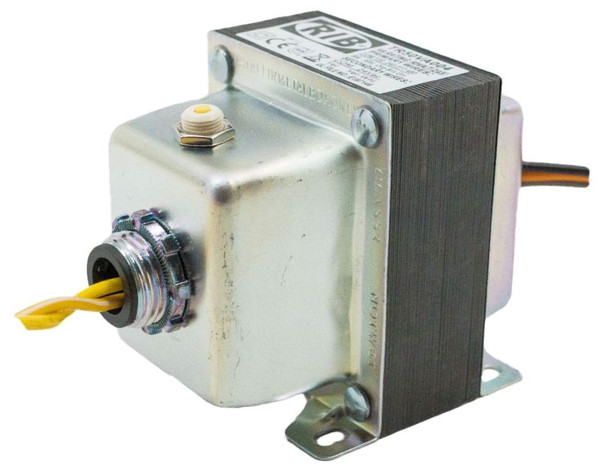

TR50VA004 50VA Transformer 480/240/208/120 to 24V Circuit Breaker Foot and Single Threaded Hub Mount
Part Description:
- Transformer
- Type Class 2 Current Limiting
- Primary Voltage 480/277/240/120 Volt AC at 50/60 Hertz
- Secondary Voltage 24 Volt AC at 50/60 Hertz
- Power Rating 50 Volt Amp
- Terminal Type 9.5 Inch Wire Lead with 0.5 Inch Strip
- Mounting Foot and Dual Threaded Hub
- Application Building Automation
- RoHS Compliant
- Overall Dimension 2.513 Inch Width x 3.475 Inch Depth x 3.014 Inch Height
- Operating Temperature -30 to 140 Deg F
- Over Current Protection Type Circuit Breaker
- MTBF Rating 100000 Hour at 77 Deg F
- Construction Type Split-Bobbin
- Includes 0.5 Inch Threaded Hub
- Approval UL (Canada and US), CE
UPC: 78502883126
Part Number: TR50VA004
Features / Benefits
- RoHS Compliant
- Made in USA
