Product Overview

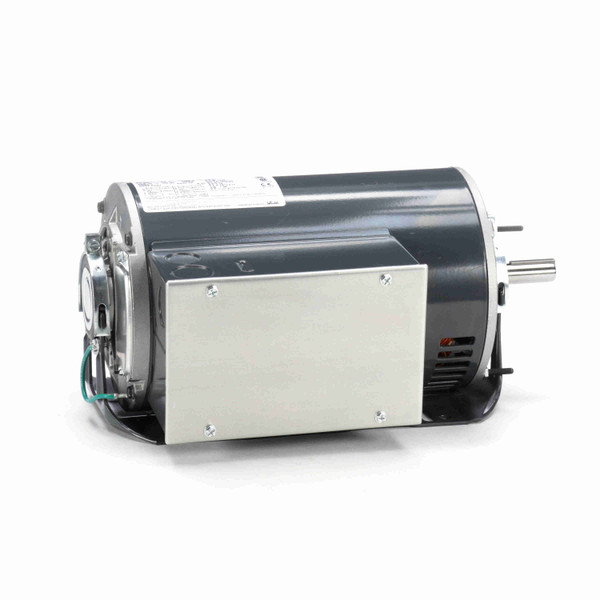

Marathon B352 Fan and Blower Motor 2 HP 1 Ph 60 Hz 115/208-230 V 1800 RPM 56H Frame
KEY FEATURES
- Heavy gauge steel frame and base
- Ball bearings
- Capacitor start/capacitor run design for reduced amperage
- 56H, 143T, and 145T combination base with 12 mounting holes
- 3/4" thru-bolts, shaft end
Nameplate Specifications
| Phase: | 1 | Output HP: | 2 Hp |
| Output KW: | 1.5 kW | Voltage: | 115/208-230 V |
| Speed: | 1725 rpm | Service Factor: | 1.15 |
| Frame: | 56H | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 78.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 21.0/11.3-10.5 A | Power Factor: | 78.3 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | N | KVA Code: | J |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Base - Extended Studs |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 13.85 in |
| Frame Length: | 9.56 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.91 in | Assembly/Box Mounting: | F1 ONLY |
General Specifications
| UPC: | 722856048455 | Weight: | 50.00 LB |
| Packaged Length: | 16.38 IN | Packaged Width: | 10.5 IN |
| Packaged Height: | 8.12 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
