Product Overview

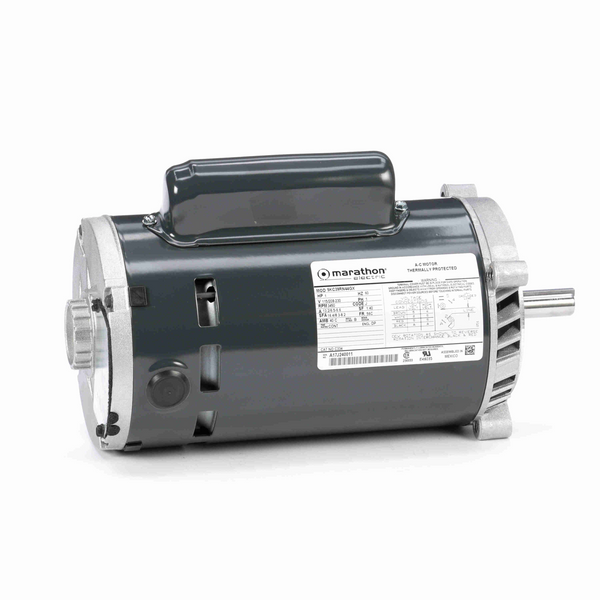

Marathon C334 Fan and Blower Motor 1 HP 1 Ph 60 Hz 115/208-230 V 3600 RPM 56C Frame
KEY FEATURES
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double shielded ball bearings provide longer service life.
- Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
- Various mounting configurations (as noted).
Nameplate Specifications
| Phase: | 1 | Output HP: | 1 Hp |
| Output KW: | 0.75 kW | Voltage: | 115/208-230 V |
| Speed: | 3450 rpm | Service Factor: | 1.4 |
| Frame: | 56C | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 68.1 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 13.2,6.5-6.6 A | Power Factor: | 0 |
| Duty: | Continuous | Insulation Class: | B |
| KVA Code: | J | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Yes | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | SM |
| Poles: | 2 | Rotation: | Clockwise/Counterclockwise |
| Mounting: | Round | Motor Orientation: | ANY |
| Drive End Bearing: | LOCKED | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Overall Length: | 12.59 in |
| Frame Length: | 8.5 in | Shaft Diameter: | 0.630 in |
| Shaft Extension: | 1.88 in |
General Specifications
| UPC: | 722856048837 | Weight: | 22.00 LB |
| Packaged Length: | 13.69 IN | Packaged Width: | 7.13 IN |
| Packaged Height: | 7.5 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
