Product Overview

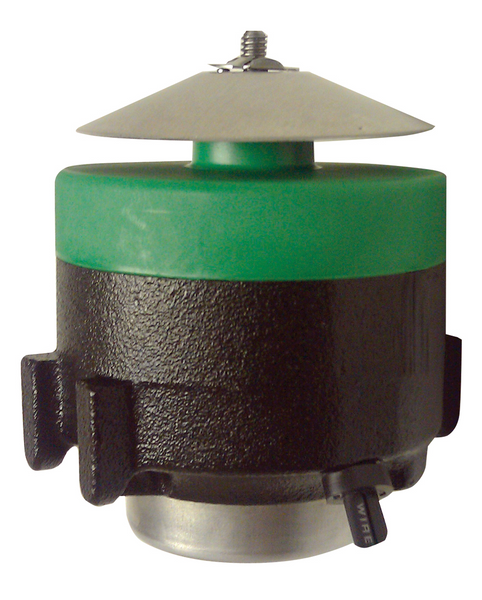

Mars 05443 ECM 51 Frame Commercial Refrigeration Motor 9 Watt 115 V CW
ECM 51 Frame Commercial Refrigeration Motors EM&S manufactures an ECM unit bearing construction motor that can serve as a drop-in replacement for the obsolete GE 55/44 frame ECM 1650 or 1850 rpm motor. This motor is available in a 9 watt and a 16 watt version. This promises substantial energy savings and potentially fast payback on the cost of conversion
Features: • Ultra high efficiency • Improved reliability • Enhanced airflow performance • Energy savings of 66 percent over a wide speed range • Low operating temperature • Lyall plug or EMF plug • Accessories included with each motor; (1) speed nut, (1) resilient fan silencer, (3) 8-36 mounting screws, (1) rainshield • Replaces GE ECM 55/44
Motor Type
ECM
Enclosure
TEAO
H.P. (Max.)
9 Watt
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
1650
NEMA Frame Size
51
Phase
Single
Standards
UL/CUL
FLA
0.32
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
0.425
Shaft Dia Inches
1/4
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class A
Capacitor Included
No
Capacitor Rating
No
Brand
EM&S
Pack Qty
1
Case Qty
12
Pallet Qty
288
Length
6.00 in.
Width
5.50 in.
Height
5.70 in.
Weight
3.1500 lbs
Harmonized Tariff Code
8501400000
UPC
685744054436
Country of Origin Code
CN
Country of Origin Name
China
