Product Overview

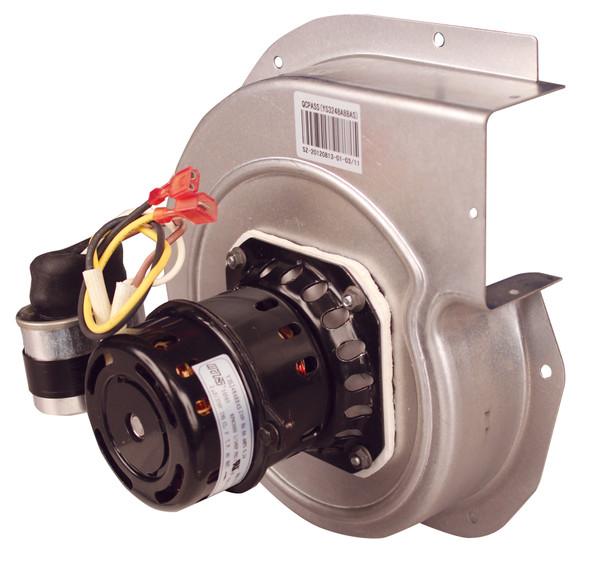

Mars 10565 Draft Inducer Replaces Trane 80% D965128P01
Motor Type
PSC
Enclosure
Open
H.P. (Max.)
17W -22Watt
Voltage
208-230
Multi-Rated H.P.
17W -22Watt
Speeds
1
Hz
60
Rotation
CW
RPM Range
3000
NEMA Frame Size
2.6"/65mm
Phase
Single
Standards
CUL
FLA
0.24
Bearing
Ball
Shaft Length Inches
4.13
Shaft Dia Inches
0.3
Thermal Protection
BR-A1D150
Ambient Deg C
60
Ins. Class
Class F
Capacitor Included
Yes
Capacitor Rating
2/370V
Brand
MARS
Pack Qty
1
Case Qty
1
Pallet Qty
64
Length
12.30 in.
Width
10.80 in.
Height
10.80 in.
Weight
4.6500 lbs
Harmonized Tariff Code
8501106080
UPC
685744105657
Country of Origin Code
CN
Country of Origin Name
China
