Product Overview

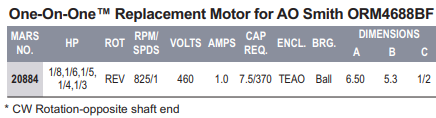

Mars 20884 1/8-1/3HP 460V 825 Outdoor Condenser Fan Motor
Benefits
- 460V Outdoor Condenser Fan Motor
- 80C SunSlinger
- Ball Bearing, Single Phase
- Rheem mounting holes w/screws installed
- Trane 4.33 bolt circle mtg holes w/self tap screws
- Thru Bolt or Band Mounting
- Water Slinger on shaft
- Capacitor requirement noted on motor label
- Class F insulation
- Thermal Overload, Continuous Duty
Bearing: Ball
Duty: Continuous
Enclosure: TEAO
HP (Max.): 1/3
Motor Type: PSC
No. of Poles: 8.0
Phase: Single
Rotation: REV
RPM: 825
RPM Range: 700-900
Thermal Protection: Auto
Service Factor: 1.0
Speeds: 1
