Product Overview

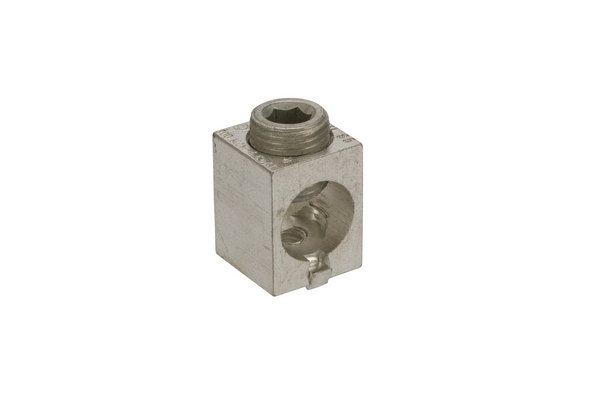

NSI S300 Aluminum Box Connector 300 MCM -6 AWG
Description:
NSI S300 300 MCM-6 BOX CONNECTOR
NSI S300 300 MCM-6 BOX CONNECTOR
Technical Description:
Dual Rated Type; Electro-Tin Plated 6061T-6 Aluminum Alloy Material; 0.88 Inch Overall Length; 6 AWG min. Conductor Size; 300 MCM Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size
UPC: 66238100223
Part Number: S300
Product Specifications
| UPC: | 66238100223 |
| Material: | Electro-Tin Plated 6061T-6 Aluminum Alloy |
| Stud Size: | 1/4 Inch |
| Overall Length: | 0.88 Inch |
| Approval: | UL 486A/B, CSA |
| Additional Information: | Overall Dimension 0.88 Inch Width x 1.09 Inch Height; Number of Ports 1; Torque Rating 325 Inch-Pound; Box Turn Prevent to Mounting Hole Size 0.312 Inch; Mounting Hole Size 0.25 Inch; Voltage Rating 600 Volt; Temperature 90 Deg C; Includes Threaded Mounti |
| Catalog Number: | S300 |
| Model: | BTP |
| Type: | Dual Rated |
| Number of Conductors: | 1 |
| Minimum Conductor Size: | 6 AWG |
| Maximum Conductor Size: | 300 MCM |
| Conductor Material: | Aluminum/Copper |
| Screw Type: | 3/8 Inch Hex Wrench |
| CATALOG DESCRIPTION: | ALUMINUM DUAL RATED BOX LUGS 300 MCM-6 AWG TURN PREVENT LUGS ARE MADE OF 6061T-6 ALUMINUM ALLOY. ELECTRO-TIN PLATED FOR LOW CONTACT RESISTANCE. FOR USE WITH COPPER OR ALUMINUM CONDUCTORS. DESIGN INCLUDES THREADED MOUNTING HOLE. RATED 600V (2000V MAX. PER UL486B). UL 486A/B LISTED. TEMPERATURE RATING 90 DEGREES C. |
| Category: | Large Terminals & Connectors |
| Full Technical Description: | Dual Rated Type; Electro-Tin Plated 6061T-6 Aluminum Alloy Material; 0.88 Inch Overall Length; 6 AWG min. Conductor Size; 300 MCM Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 3/8 Inch Hex Wrench Screw Type; Overall Dimension 0.88 Inch Width X 1.09 Inch Height; Number of Ports 1; Torque Rating 325 Inch-Pound; Box Turn Prevent to Mounting Hole Size 0.312 Inch; Mounting Hole Size 0.25 Inch; Voltage Rating 600 Volt; Temperature 90 Deg C; Includes Threaded Mounting Hole; Application Wire Termination |
| Made in USA: | Yes |
| Manufacturer: | NSi Industries, LLC |
| Manufacturer Brand: | NSi Industries, Inc. |
| Product Description: | NSI S300 300 MCM-6 BOX CONNECTOR |
| Sub-Category: | Mechanical Cable Lug |
| UNSPSC: | 39121408 |
| UPC 12 Digit: | 662381002235 |
