Product Overview

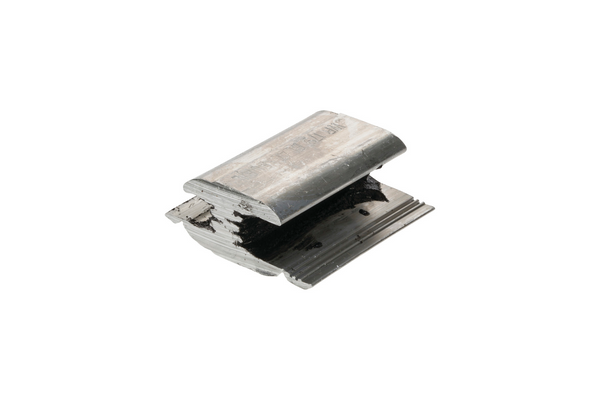

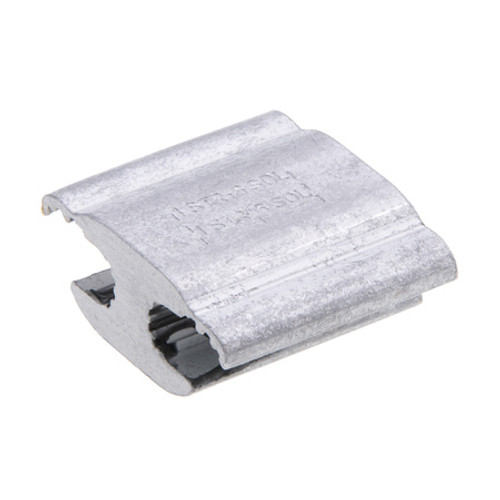

NSI WRD179 Aluminum Wide Range Connector 1/0-2 AWG
Aluminum Wide Range Tap Connector-Dual Rated – for 1/0-2 AWG
- For combinations of aluminum and aluminum-copper conductors
- All connectors are reversible
- Made from high-strength aluminum alloy
- Formable ribs provide broader contact area
- Fold-in tabs provide positive tab interlock as tool closes
| UPC: | 66238100331 |
| Die Index: | O |
| Body Material: | Aluminum Alloy |
| Additional Information: | Type Dual Rated; Application Terminate, Splice, Tap Power Connector |
| Catalog Number: | WRD179 |
| Model: | WRD |
| Voltage Rating: | 600 Volt |
| Conductor Material: | Copper/Aluminum/ACSR |
| Minimum Run Conductor Size: | 3 AWG (ACSR), 2 AWG (Stranded) |
| Maximum Run Conductor Size: | 1/0 AWG (ACSR/Stranded), 1 AWG (Solid) |
| Minimum Tap Conductor Size: | 6 AWG (ACSR/Stranded/Solid) |
| Maximum Tap Conductor Size: | 2 AWG (Solid), 3 AWG (Stranded), 4 AWG (ACSR) |
| CATALOG DESCRIPTION: | DUAL RATED WIDE RANGE TAP CONNECTORS 3-2/0 AWG DUAL RATED WIDE RANGE TAP CONNECTORS ARE USED FOR COMBINATIONS OF ALUMINUM AND ALUMINUM-COOPER CONDUCTORS. STANDARD COMPRESSION TOOLS AND DIES INSTALL IN ALL SIZES. THEY HAVE FORMABLE RIBS TO PROVIDE BROADER CONTACT AREA. FOLD-IN TABS PROVIDE POSITIVE TAB INTERLOCK AS TOOL CLOSES. MADE FROM HIGH STRENGTH ALUMINUM ALLOY. ALL CONNECTORS ARE REVERSIBLE. RATED 600 VOLTS. |
| Category: | Large Terminals & Connectors |
| Full Technical Description: | 3 AWG (ACSR), 2 AWG (Stranded) min. Run Conductor Size; 1/0 AWG (Acsr/Stranded), 1 AWG (Solid) Max. Run Conductor Size; 6 AWG (Acsr/Stranded/Solid) min. Tap Conductor Size; 2 AWG (Solid), 3 AWG (Stranded), 4 AWG (ACSR) Max. Tap Conductor Size; Copper/Aluminum/Acsr Conductor Material; 600 Volt Voltage Rating; Aluminum Alloy Body Material; O Die Index; Type Dual Rated; Application Terminate, Splice, Tap Power Connector |
| Manufacturer: | NSi Industries, LLC |
| Manufacturer Brand: | NSi Industries, Inc. |
| Product Description: | NSI WRD179 #3-2/0 WIDE RANGE TAP CONNECTOR |
| Sub-Category: | Compression Cable Tap |
| UNSPSC: | 39121428 |
| UPC 12 Digit: | 662381003317 |
