Product Overview

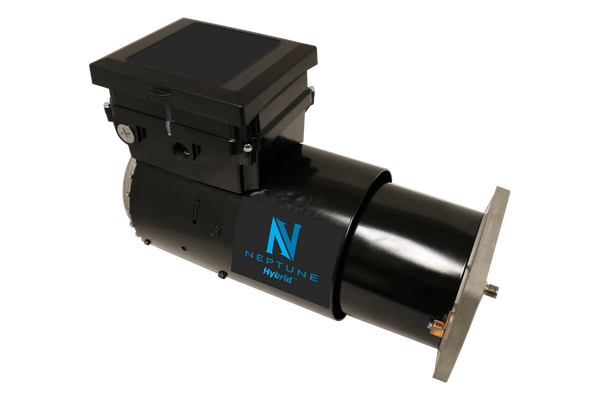

US Motors-Nidec NPHT225 Neptune Hybrid 230v 10.2 Amps 600-2450 RPM 2.25 HP 56J Mounting
Key Specifications
- Total Horsepower (THP): 2.25
- Voltage: 230V single-phase, 60 Hz (10.2 Amps)
- RPM Range: 600–2,760 / 3,450 RPM (Variable speed + boost mode)
- Motor Frame: 56J (Threaded shaft)
- Enclosure: Finned aluminum frame with an IPX5 water-resistance rating
- Length Less Shaft: 14.07 inches
Core Features
- Hybrid Technology: Uses a brushless permanent magnet motor for everyday low-cost circulation and a standard induction boost for heavy-duty tasks like vacuuming.
- Smart Controls: Features an integrated user interface supporting up to 7 daily programmable schedules, freeze protection, and one-touch clean/priming modes.
- Efficiency Compliance: Meets strict energy regulations including California Title 20.
