Product Overview

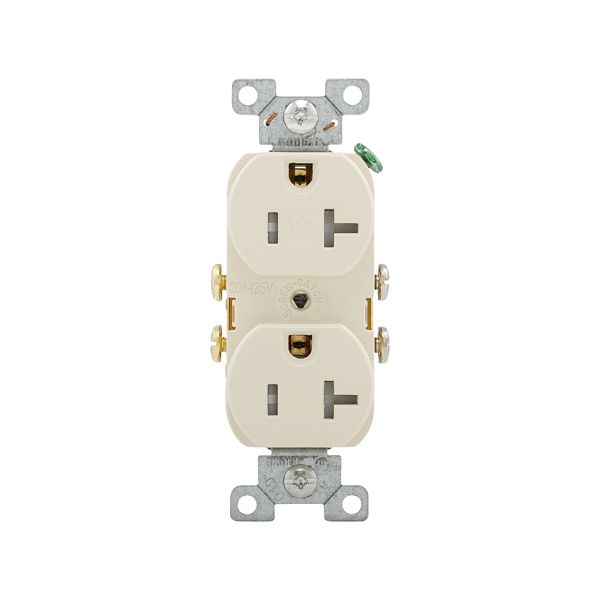

Eaton Wiring Devices TRCR20LA Rec TR Dup 20A 125V 2P3W SWIRE Str LA
Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Light almond, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, Core pack
Eaton’s straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.
| Allowable Wire Size | #14-10 AWG |
| Amperage Rating | 20 A |
| Application | Commercial |
| Color | Light almond |
| Connection Type | Screw |
| Contact Material | Brass |
| Design Type | Straight blade |
| Device Grade | Commercial |
| Device Type | Receptacle |
| Face/Body Material | Impact-resistant nylon face | PVC body |
| Features | Tamper resistant | Auto-grounding |
| Material | PVC |
| Mounting method | Flush |
| Mounting Type | Flush |
| Nema Configuration | 5-20R |
| Number Of Poles | Two-pole |
| Number Of Wires | 3 |
| Packaging type | Core pack |
| Receptacle Type | Duplex |
| Style Type | Standard |
| Torque rating | 14 lbf-inch |
| Type | Duplex receptacle |
| Voltage Rating | 125V |
| Wiring Method | Side wire |
| Length | 1.24 IN |
| Width | 0.79 IN |
| Height | 4 IN |
| Volume | 3.918 CI |
| Weight | 0.154 LB |
| Length | 1.24 IN |
| Width | 0.79 IN |
| Height | 4 IN |
| Weight | 0.154 LB |
|
