Product Overview

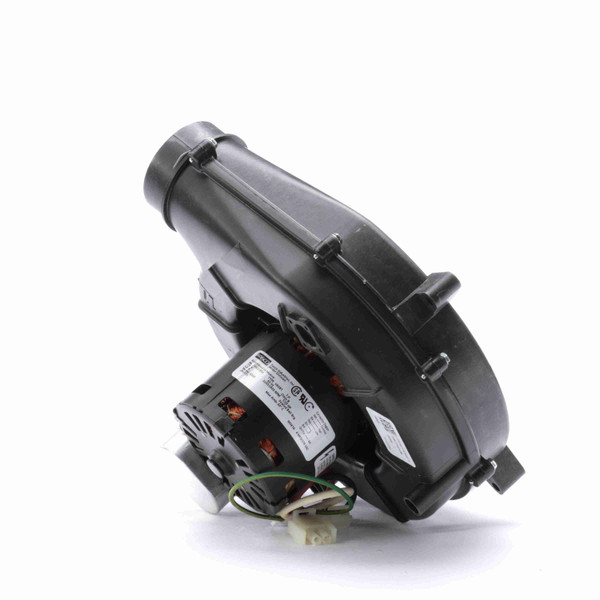

Fasco A368 Draft Inducer 3200 RPM 115 Volts Replaces Trane 7062-3782
- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 7-5" White Lead with Pin Terminal, 6-4" Lead with Pin Terminals, 6-5" Capacitor Lead with F Flag Terminal
General Specifications
| UPC: | 815585026761 | Weight: | 6.00 LB |
| Packaged Length: | 10.63 IN | Packaged Width: | 10.25 IN |
| Packaged Height: | 9.75 IN |
Nameplate Specifications
| Voltage: | 115 V | Motor Type: | Permanent Split Capacitor |
| Thermal Protection: | Thermally | Speed: | 3200/2900 rpm |
| Current: | 0.8 A | Number of Speeds: | 2 |
| Frequency: | 60 Hz | Phase: | 1 |
| Ambient Temperature: | 40 °C | UL: | Yes |
| Insulation Class: | B | CSA: | Yes |
Technical Specifications
| Blower Outlet Shape: | Round | Motor Enclosure: | Open |
| Blower Outlet Flange: | No | Bearing Type: | Sleeve |
Direct replacement for
| Fasco | 7062-3782 |
|---|---|
| Trane | 7062-3782 |
| Trane | BLW-535 |
| Trane | D340623P01 |
