Product Overview

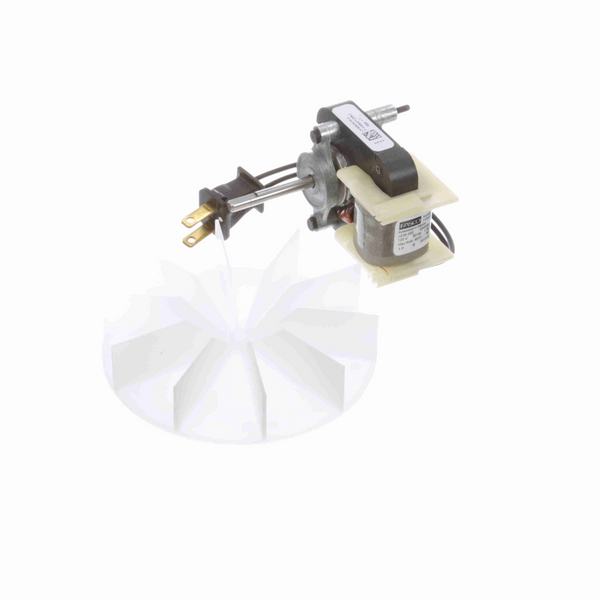

Fasco K1550 1/150 HP C-Frame / Skeleton Motor 3000 RPM 120 Volts
KEY FEATURES
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .217" Diameter Shaft with Flat
- 6.5" Leads with Molded Plug
- Extended Studs Opposite Shaft End
- Downloads:
- K1550 Data Pack
General Specifications
| UPC: | 818508024837 | Weight: | 2.00 LB |
| Packaged Length: | 5.88 IN | Packaged Width: | 7.25 IN |
| Packaged Height: | 5.63 IN | HTC: | 8501.10.4020 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/150 Hp | Output KW: | 0.01 kW |
| Frequency: | 60 Hz | Voltage: | 120 V |
| Current: | .92 A | Speed: | 3000 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | B |
| Frame: | C-FRAME | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Frame Length: | 1.64 in |
| Shaft Diameter: | 0.217 in | Shaft Extension: | 1.624 in |
