Product Overview

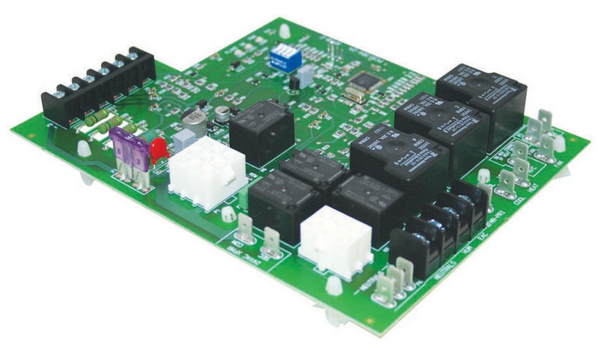

ICM ICM288 ICM Furnace Control Replaces Rheem 622408482
Part Description:
- Furnace Control Module
- Type Microprocessor Based
- Ignition Trial Time 10 Second
- Prepurge Time 60 Second
- Valve Rating 1 Amp at 24 Volt AC (Gas Valve)
- Power Rating 98 to 132 Volt AC at 60 Hertz (Line)
- Size 7.5 Inch Length x 5.75 Inch Width x 1.5 Inch Height
- Application Furnace
- Approval UL (Canada and US)
- Output Rating 5 Amp at 120 Volt AC (Igniter), 10 Amp, 2 HP at 240 Volt AC (Cool Blower), 5 Amp, 1/2 HP at 240 Volt AC (Heat), 4 Amp at 120 Volt AC (Inducer Motor), 0.5 Amp at 24 Volt AC (Humidifier Motor), 1 Amp at 120 Volt AC (Electronic Air Cleaner)
Part Number: ICM288
Features / Benefits
- Low Cost Form, Fit and Functional Replacement for Rheem 62-24084-82 Circuit Boards
- Microprocessor Based Design
- Monitors Pressure, Roll-Out and Limit Switches
- Controls Gas Valve, Inducer Draft Motor, Circulating Blower and Hot Surface Igniter
- Reverse Polarity Detection
- Twinning Compatible with Other ICM288 Control Boards
- Diagnostic LEDs for Testing/Troubleshooting
- Made in USA
