Product Overview

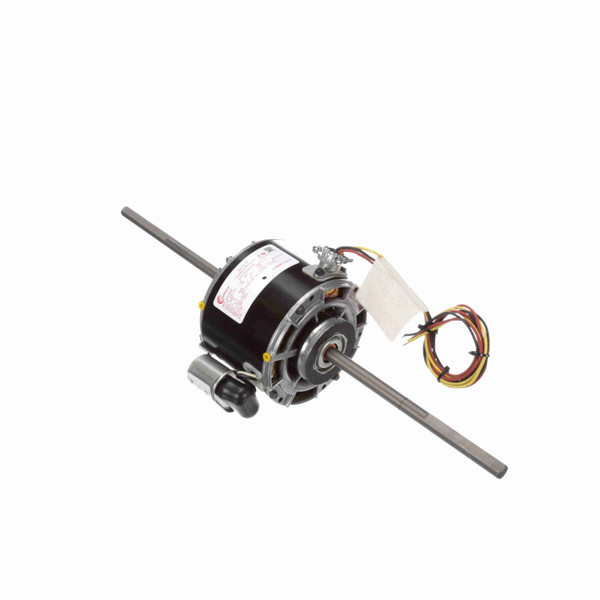

Century 747 1/4-1/8 HP OEM Replacement Motor, 1625 RPM, 2 Speed, 208-230 Volts, 42 Frame
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 33" Leads
- Resilient Ring Mounting
General Specifications
| UPC: | 786674007889 | Weight: | 10.00 LB |
| Packaged Length: | 20.18 IN | Packaged Width: | 6.81 IN |
| Packaged Height: | 6.5 IN |
Nameplate Specifications
| Output HP: | 1/4, 1/8 Hp | Output KW: | 0.19 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 2.0 A | Speed: | 1625 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | A |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 2 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Lead End |
| Mounting: | Resilient Rings | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 16.75 in | Frame Length: | 3.17 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 7 3/4 in |
