Product Overview

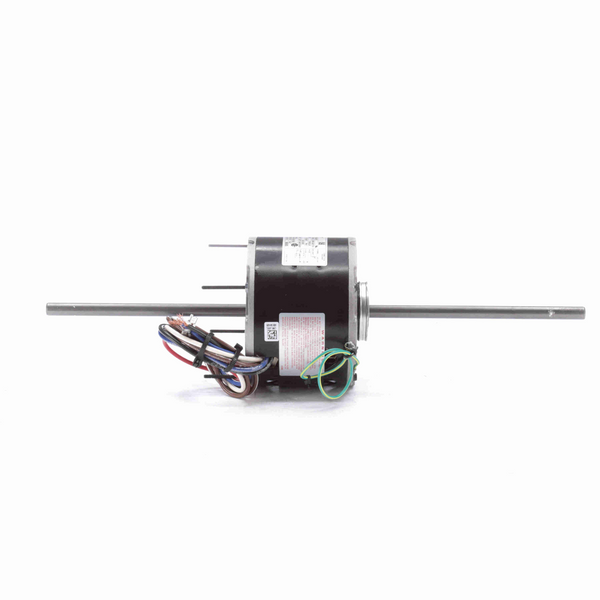

Century 9685 1/6 HP Fan Coil / Room Air Conditioner Motor 1550 RPM 3 Speed 115 Volts 48 Frame
KEY FEATURES
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 14" Leads
- Extened Studs Opposite Lead End, Resilient Ring Mounting
- Downloads:
- U9685 Data Pack
General Specifications
| UPC: | 786674009562 | Weight: | 13.00 LB |
| Packaged Length: | 22.87 IN | Packaged Width: | 6.81 IN |
| Packaged Height: | 6.81 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/6 Hp | Output KW: | 0.13 kW |
| Frequency: | 50 Hz | Voltage: | 115 V |
| Current: | 2.7 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 48Y | Enclosure: | Semi Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Lead End |
| Mounting: | Resilient Ring/Extended Studs | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 20.00 in | Frame Length: | 3.38 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 7.51X.5X8.50 in |
