Product Overview

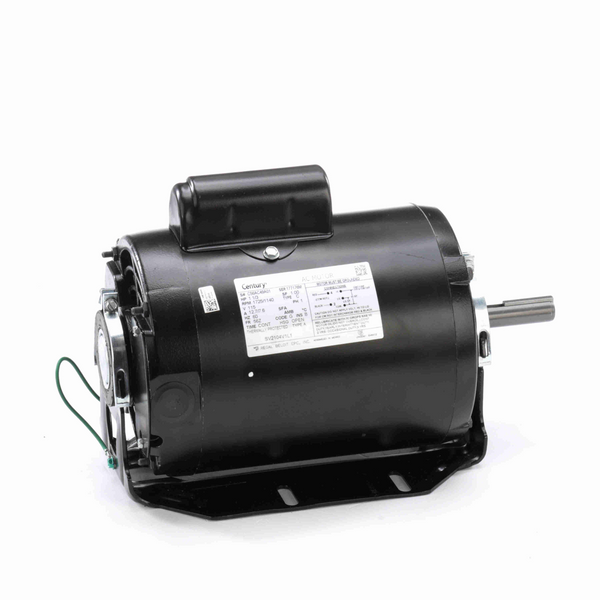

Century SV2104V1L1 Refrigeration Motor 1 1/3 HP 1 Ph 60 Hz 115 V 1800 RPM 56Z Frame
KEY FEATURES
- Brass current carrying
- Single and two speed
- Continuous filtration of oil
- Electro-zinc encapsulating varnish
- Heavy magnet wire insulation
- Moisture resistant terminal board
- Electro-zinc plated governor parts, dust caps and terminal board cover
- Auto protector
- Downloads:
- SV2104V1L1 Data Pack
General Specifications
| UPC: | 786674059932 | Weight: | 35.00 LB |
| Packaged Length: | 17 IN | Packaged Width: | 11 IN |
| Packaged Height: | 11 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1 1/3 Hp | Output KW: | 0.99 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 12.7/7.6 A | Speed: | 1725/1140 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 56Z | Enclosure: | Open Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | No | CSA: | Y |
| CE: | N | Number of Speeds: | 2 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 4/6 | Rotation: | Counterclockwise Lead End |
| Mounting: | Resilient Base | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 12.09 in |
| Frame Length: | 6.69 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2.13 in |
