Product Overview

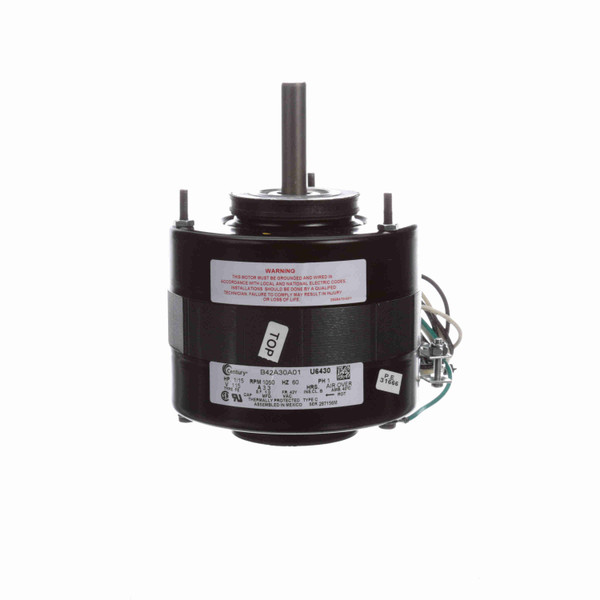

Century U6430 1/15 HP Unit Heater Motor 1050 RPM 115V Replaces Packard 40387
- Unit Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 35" Leads
- Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Lead End
General Specifications
| UPC: | 786674032249 | Weight: | 8.00 LB |
| Packaged Length: | 8.87 IN | Packaged Width: | 5.81 IN |
| Packaged Height: | 5.81 IN |
Nameplate Specifications
| Output HP: | 1/15 Hp | Output KW: | 0.05 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 3.3 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 42Y | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Counterclockwise Lead End |
| Mounting: | Extended Studs | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Na | Shaft Type: | Flat |
| Overall Length: | 6.79 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 2.7 in |
