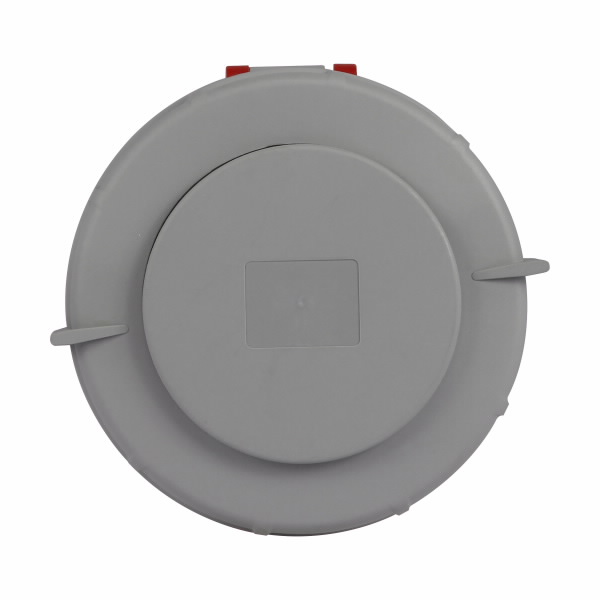

Eaton Wiring Devices AH5100C7W Conn Pin&Slv 100A277/480V 3PH 4P5W WT RD

Eaton Wiring Devices

(No reviews yet) Write a Review
$453.96
SKU:
AH5100C7W
UPC:
040893620626
Availability:
IN STOCK
Weight:
3.78 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Eaton Wiring Devices AH5100C7W Conn Pin&Slv 100A277/480V 3PH 4P5W WT RD

Eaton Arrow hart pin and sleeve connector, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3ØY 277/480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, 0.97-1.94in (2.46-5.00cm), Female, 20 HP, Nylon, 3PH
Arrow Hart pin and sleeve iec 60309 devices includes connectors, receptacles, plugs, inlets, interlocks, accessories

Allowable Wire Size #4 -1/0 AWG, #12-16 AWG (pilot)
Amperage Rating 100A
Application Industrial, food and beverage, wastewater treatment
Color Red
Contact Material Nickel plated brass
Cord Diameter 0.97-1.94in (2.46-5.00cm)
Design Type Pin and sleeve connector
Environmental Resistance IP67 | IP69K
Face/Body Material Nylon
Gender Female
Horsepower 20 hp
Material Nylon
Number Of Poles Four-pole
Number Of Wires 5 | Grounding
Phase Three-phase
Torque rating 70 lbf-inch
Type Connector
Voltage Rating 277/408 V
Length 13.375 IN
Width 5.5 IN
Height 5.625 IN
Volume 413.789 CI
Weight 3.789 LB
Length 13.375 IN
Width 5.5 IN
Height 5.625 IN
Weight 3.789 LB

  • Refer to warranty document.
