Eaton Wiring Devices AH520P7W Plug Pin&Slv 20A 277/480V 3PH 4P5W WT RD

Eaton Wiring Devices

(No reviews yet) Write a Review
$127.46
SKU:
AH520P7W
UPC:
032664732287
Availability:
IN STOCK
Weight:
1.10 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Eaton Wiring Devices AH520P7W Plug Pin&Slv 20A 277/480V 3PH 4P5W WT RD

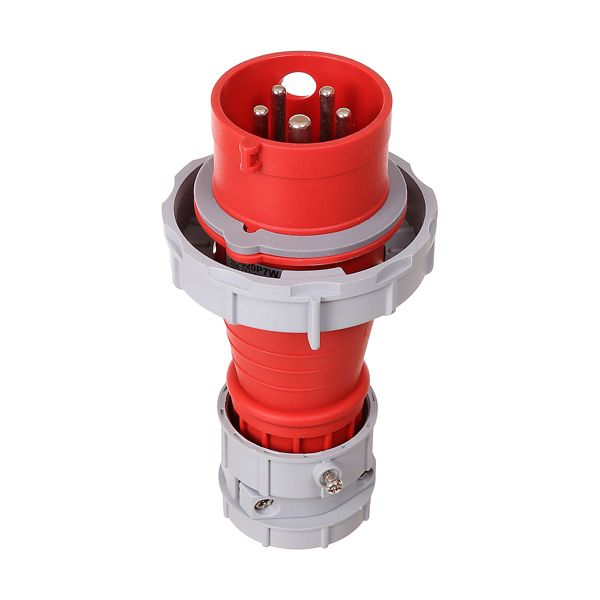

Eaton Arrow hart pin and sleeve plug, IP69K Rated, #12 - #10 AWG, 20A, 3ØY 277/480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, grounding, 0.433-0.84in (1.10-2.5cm), Male, 5 HP, Nylon, Three-phase
Eaton's Arrow Hart full line of pin and sleeve devices offer sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance, and watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.

Allowable Wire Size #12-10 AWG
Amperage Rating 20 A
Application Industrial, food and beverage, wastewater treatment
Color Red
Contact Material Nickel plated brass
Cord Diameter 0.433-0.84in (1.10-2.5cm)
Design Type Pin and sleeve plug
Environmental Resistance IP67 | IP69K
Face/Body Material Nylon
Gender Male
Horsepower 5 hp
Material Nylon
Number Of Poles Four-pole
Number Of Wires Grounding | 5
Phase Three-phase
Torque rating 10 lbf-inch
Type Plug
Voltage Rating 277/408 V
Length 8.5 IN
Width 4.375 IN
Height 4.375 IN
Volume 162.695 CI
Weight 0.716 LB
Length 8.5 IN
Width 4.375 IN
Height 4.375 IN
Weight 0.716 LB

  • Refer to warranty document.
