Product Overview
Eaton Wiring Devices AHCL530FO CCL Flanged Outlet 30A 125V 2P3W, Y&BK
Eaton Arrow Hart Color Coded Locking Flanged Outlet, #14-8 AWG, 30A, Industrial, 125V, Back, Yellow, Black, Ultra grip, Nylon, L5-30, Two-pole, Three-wire, Nylon, -40°C (w/o impact) to 60°C (-40°F to 140°F)

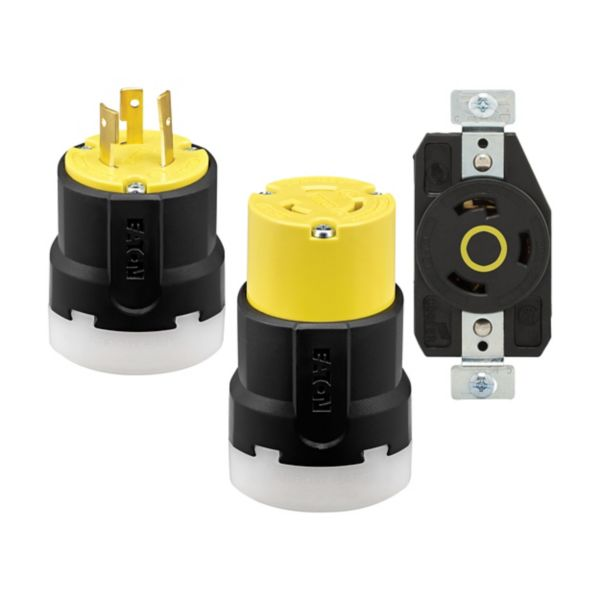

Eaton’s Arrow Hart color coded locking devices are an industry-first solution that adds six voltage rating color codes consistent with IEC 60309 standards to locking plugs, connectors, inlets, outlets and receptacles to provide you a quick, clear and easy way to identify your circuit voltage. Available in standard NEMA configurations for 20A and 30A applications, the devices ensure long-lasting, dependable service in the most demanding environments, are built with a contemporary flare and ergonomic design for a comfortable yet secure feel and offer excellent reliability and durability.
| Allowable Wire Size | #14-8 AWG |
| Amperage Rating | 30A |
| Application | Industrial |
| Color | Yellow | Black |
| Design Type | Ultra grip |
| Face/Body Material | Nylon |
| Material | Nylon |
| Nema Configuration | L5-30 |
| Number Of Poles | Two-pole |
| Number Of Wires | 3 |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Special Features | Voltage Color Coding |
| Torque rating | For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch |
| Type | Locking Flanged Outlet |
| Voltage Rating | 125 V |
| Wiring Method | Back |
| Length | 3.8 IN |
| Width | 3 IN |
| Height | 2.24 IN |
| Volume | 25.536 CI |
| Weight | 0.001 LB |
| Length | 3.8 IN |
| Width | 3 IN |
| Height | 2.5 IN |
| Weight | 0.001 LB |
|
