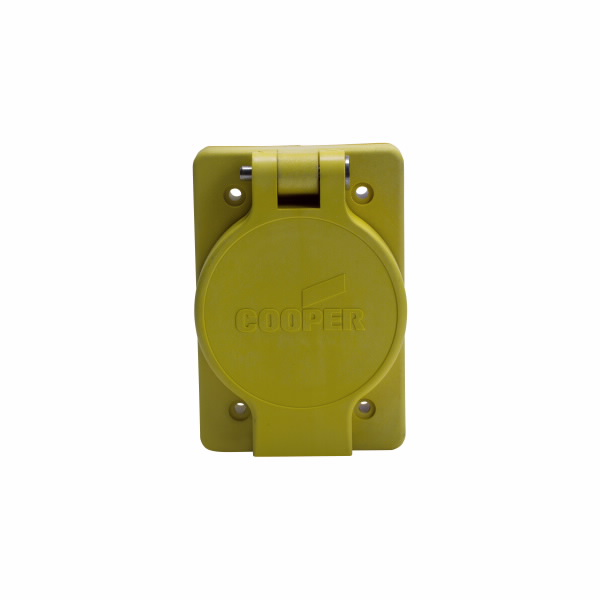

Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 347/600V, Back wiring, Yellow, Single, Watertight, L20-20, Four-pole, Four-wire, Thermoplastic
Eaton's Arrow Hart watertight locking devices utilize a unique, robust design and superior materials to provide watertight security in harsh environments.
| Allowable Wire Size |
#14-8 AWG |
| Amperage Rating |
20 A |
| Application |
Industrial |
| Color |
Yellow |
| Contact Material |
Nickel plated bronze |
| Design Type |
Single receptacle |
| Device Grade |
Extra heavy-duty industrial specification grade |
| Environmental Resistance |
NEMA 3 | NEMA 3R | NEMA 4X | NEMA 12 | IP66 | NEMA 4 |
| Face/Body Material |
Glass filled Nylon |
| Material |
Thermoplastic |
| Nema Configuration |
L20-20 |
| Number Of Poles |
Four-pole |
| Number Of Wires |
4 | Non-grounding |
| Receptacle Type |
Locking |
| Special Features |
Watertight |
| Type |
Locking receptacle |
| Voltage Rating |
3ØY 347/600 V |
| Wiring Method |
Back |
| Length |
6.75 IN |
| Width |
4.25 IN |
| Height |
4 IN |
| Volume |
114.75 CI |
| Weight |
1.025 LB |
| Length |
6.75 IN |
| Width |
4.25 IN |
| Height |
4 IN |
| Weight |
1.025 LB |
