Product Overview

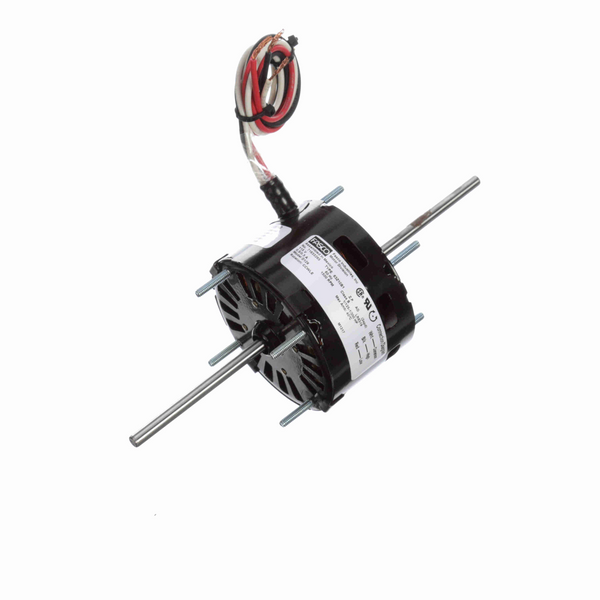

Fasco D129 Fan and Blower Motor 1/125-1/200 HP 1 Ph 60 Hz 115 V 1500 RPM 2 Speed
KEY FEATURES
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Impedance Protected
- Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 21" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount
- Downloads:
- D129 Data Pack
General Specifications
| UPC: | 815585028505 | Weight: | 2.60 LB |
| Packaged Length: | 10.5 IN | Packaged Width: | 5.38 IN |
| Packaged Height: | 4.38 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/125-1/200 Hp | Output KW: | 0.01 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 0.50/0.30 A | Speed: | 1500 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Impedance | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 2 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 8.75 in |
| Frame Length: | 1.95 in | Shaft Diameter: | 0.250 in |
| Shaft Extension: | 3.25 in |
