Product Overview

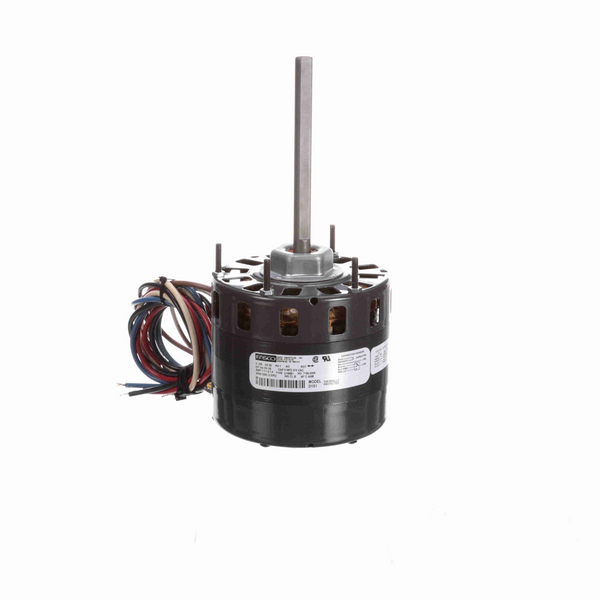

Fasco D151 Fan and Blower Motor 1/4-1/5-1/6 HP 1 Ph 60 Hz 230 V 1050 RPM 3 Speed 42 Frame
KEY FEATURES
- Direct Drive Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End, Belly Band
- Downloads:
- D151 Data Pack
General Specifications
| UPC: | 815585028666 | Weight: | 11.80 LB |
| Packaged Length: | 5.13 IN | Packaged Width: | 5.13 IN |
| Packaged Height: | 15 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/4-1/5-1/6 Hp | Output KW: | 0.19 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 1.7/1.2/1.0 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 10.97 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.00 in |
