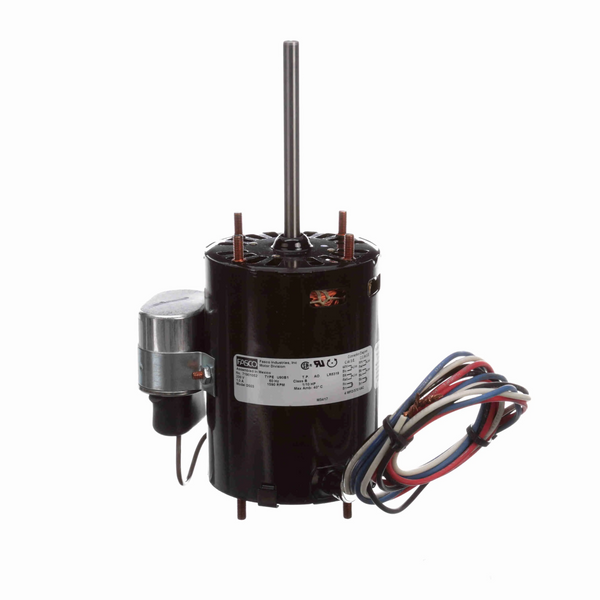

Fasco D503 Fan and Blower Motor 1/10 HP 1 Ph 60 Hz 230 V 1590 RPM 1 Speed
KEY FEATURES
- General Purpose Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame and Opposite Shaft End End-Frame, Eclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End and Opposite Shaft End
- Downloads:
- D503 Data Pack
General Specifications
| UPC: | 818508020709 | Weight: | 6.00 LB |
| Packaged Length: | 10.5 IN | Packaged Width: | 5.38 IN |
| Packaged Height: | 4.38 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/10 Hp | Output KW: | 0.07 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 1.00 A | Speed: | 1590 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 8.77 in |
| Frame Length: | 4.39 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 3.87 in |
