Product Overview

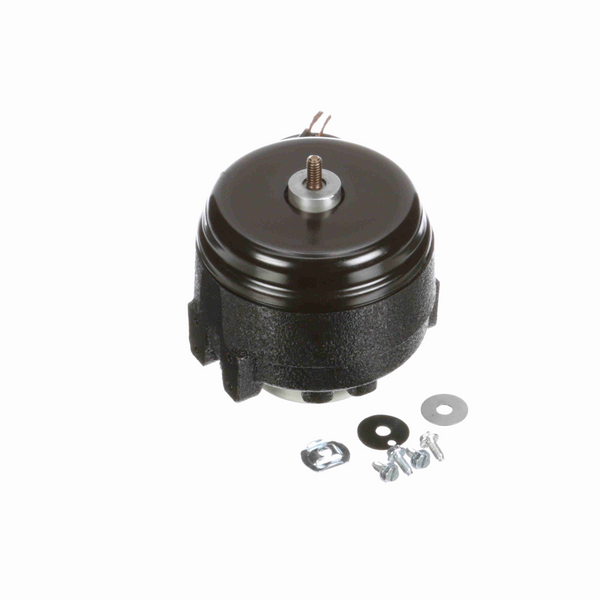

Fasco D573 25 WATT Refrigeration Motor 1550 RPM 230 Volts Unit Bearing TEAO
KEY FEATURES
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Auto Reset
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4 x 20 Threaded Shaft
- 25.5" Leads
- Tapped Double Boss, 3 Tapped Rear Mounting Holes
General Specifications
| UPC: | 818508024547 | Weight: | 5.00 LB |
| Packaged Length: | 5.25 IN | Packaged Width: | 3.88 IN |
| Packaged Height: | 3.88 IN |
Nameplate Specifications
| Output Watts: | 25 W | Frequency: | 60 Hz |
| Voltage: | 230 V | Current: | 0.66 A |
| Speed: | 1550 rpm | Service Factor: | 1 |
| Phase: | 1 | Duty: | Continuous Air Over |
| Insulation Class: | B | Frame: | UNIT BEARING |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Automatic |
| Ambient Temperature: | 40 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Lead End |
| Mounting: | 2 BOSS/OSE 3 HOLES | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Cast Iron |
| Shaft Type: | Threaded | Frame Length: | 3.85 in |
| Shaft Diameter: | 1/4x20 in | Shaft Extension: | 0.5 in |
