Product Overview

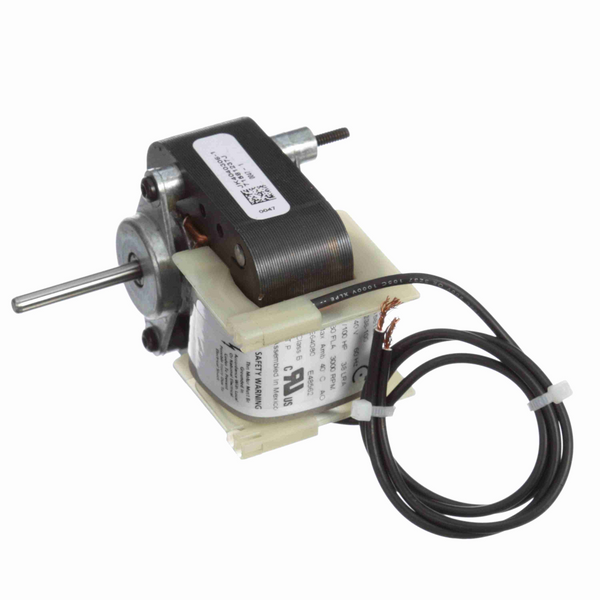

Fasco K683 1/100 HP C-Frame / Skeleton Motor 3000 RPM 240 Volts
KEY FEATURES
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .1875" Diameter Shaft
- 13.25"/12.25" Leads with .38" Strip
- Extended Studs Opposite Shaft end
- Downloads:
- K683 Data Pack
General Specifications
| UPC: | 818508021775 | Weight: | 1.80 LB |
| Packaged Length: | 11.5 IN | Packaged Width: | 9.25 IN |
| Packaged Height: | 3.63 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/100 Hp | Output KW: | 0.01 kW |
| Frequency: | 60 Hz | Voltage: | 240 V |
| Current: | .30 A | Speed: | 3000 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | C-FRAME | Enclosure: | Open Enclosed |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Clockwise |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Round | Overall Length: | 3.78 in |
| Shaft Diameter: | 0.188 in | Shaft Extension: | 1.30 in |
