Product Overview

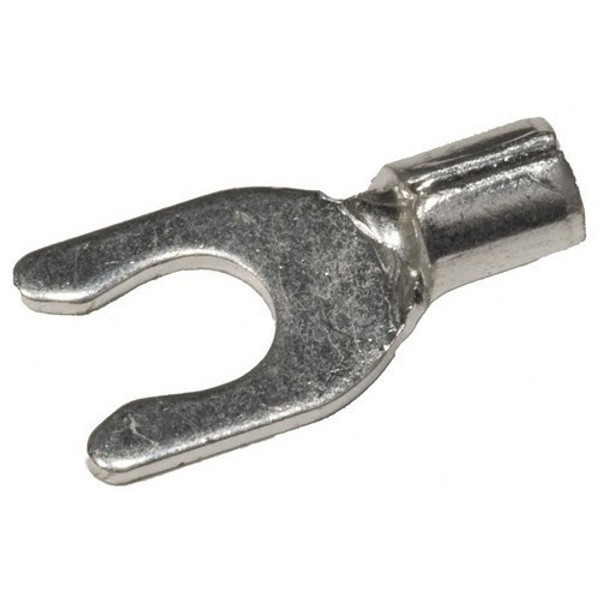

Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #6 Stud - Restock your Non Insulated Fork/Spade Terminals with us.
Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #6 Stud features include:
- Non-Insulated Fork/Spade Terminal Material: High Strength Electrolytic Copper
- Electro-Tin Plated
- Brazed Seam
- Serrated Barrel with Brazed Seam provides excellent electrical contact & resistance to pull-out forces
- Maximum Electric Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp
- 302°F(150°C) 600 Volts Max
- cULus Listed
- Order Qty of 100 = 1 Bag of 100
Below is more info on our Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #6 Stud
