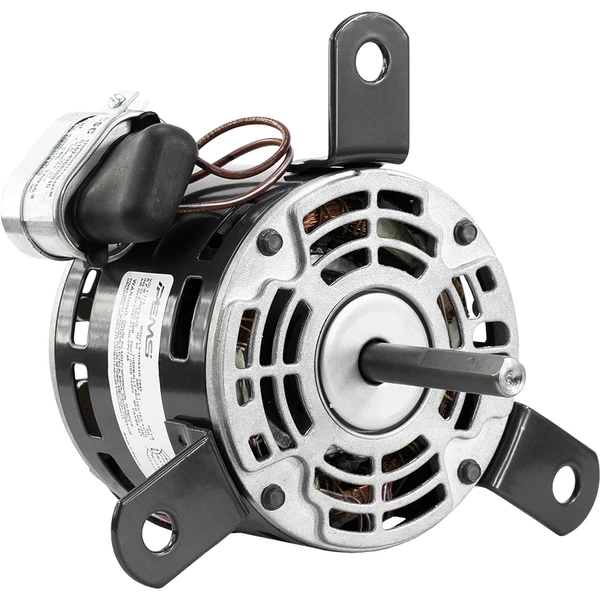

PEMS 63747 1/6 HP 3-Speed 115 Volt Electric Motor Replaces Century OPV747 & Penn Vent 63747-0

Key Specifications

• Horsepower: 1/7 HP
• RPM: 1550
• Voltage: 115 V
• Amperage: 2.2 A
• Bearings: Ball
• Frame / Diameter: 4.06"
• Shaft Dimensions: 0.5" diameter x 2.5" length
• Rotation: CCW Shaft End
• Type: Permanent Split Capacitor

Product Features & Fitment

This motor features a permanent split capacitor design for smooth and efficient operation. It is engineered to fit directly into existing Penn Barry DX11 and FX11 fan assemblies, ensuring straightforward installation without modification. The counterclockwise shaft rotation and ball bearings contribute to reliable performance and extended motor life.

Cross Reference

• Penn Barry 63747-0 DX11 and FX11 Series Fan Motors
• HP-  1/7
• Voltage- 115
• RPM- 1550
• Amps- 2.2
• Bearings- Ball
• Rotation- CCW Shaft End
• A Dimension- 4.06"
