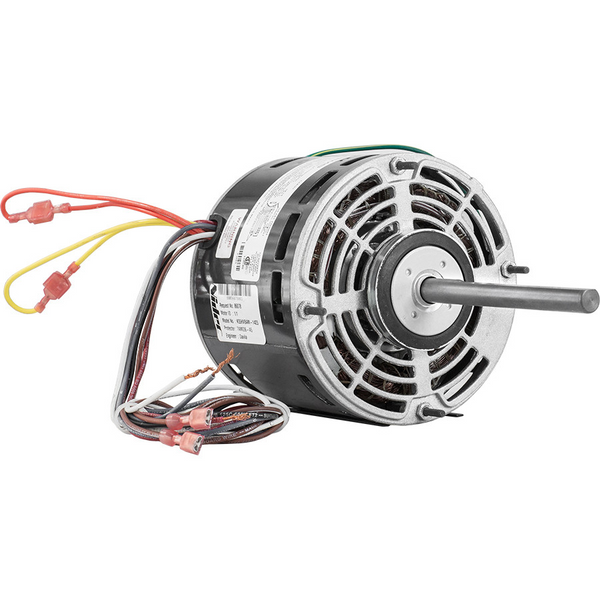

PEMS P3585 1/3 HP 3-Speed 115V Direct Drive Blower Motor Replaces Century EM3585

Key Specifications

Horsepower: 1/3 HP
Voltage: 115 Volts
RPM: 1075 RPM
Speeds: 3-Speed
Amperage: 5.5 / 3.0 / 2.0 Amps
Frame: 48Y Frame
Motor Type: PSC (Permanent Split Capacitor)
Rotation: Reversible
Bearings: Ball Bearings
Shaft Diameter: 1/2"
Shaft Length: 4"
Motor Diameter: 5.6"
Capacitor Required: 7.5 MFD, 370V (Included)
Frequency: 60 Hz
Phase: Single Phase
Enclosure: Open Air Over (OAO)
Thermal Protection: Automatic Reset
Insulation Class: Class B
Ambient Rating: 40°C
Mounting: Extended Studs, Belly Band Compatible
Duty Cycle: Continuous Duty Air Over

Product Features & Fitment

This motor features a direct drive design with an air-over configuration and standard efficiency for continuous duty applications. It includes a 7.5 MFD/370V capacitor for easy installation. The motor body length measures 4-5/16", and it comes with 25" wire leads for convenient wiring. It is a direct replacement for Genteq G3585/3585, Century DL1036, and Fasco D727 motors.
