Product Overview

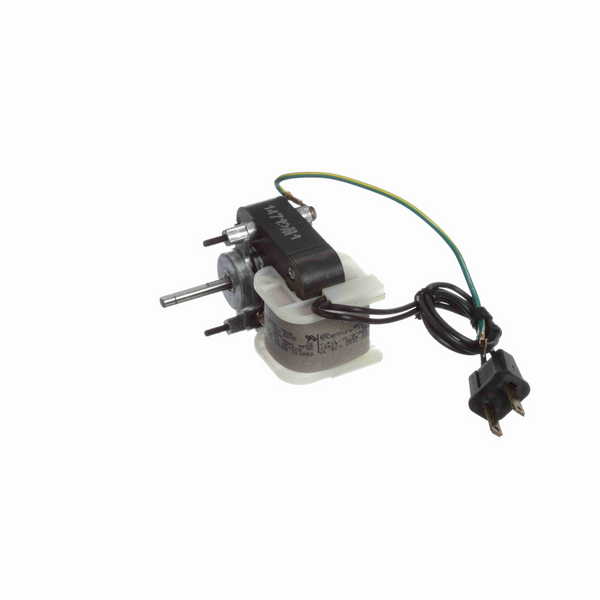

Century BR0675 7/8" Stack C-Frame / Skeleton Motor 3000 RPM 120 Volts
KEY FEATURES
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .217" Diameter Shaft with Flat
- 6.9" Leads with Molded Plug
- Extended Studs Opposite Lead End
- Downloads:
- BR0675 Data Pack
General Specifications
| UPC: | 786674014504 | Weight: | 2.00 LB |
| Packaged Length: | 4.5 IN | Packaged Width: | 2.87 IN |
| Packaged Height: | 3 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 7/8" STACK Hp | Frequency: | 60 Hz |
| Voltage: | 120 V | Current: | 1.4 A |
| Speed: | 2850 rpm | Service Factor: | 1 |
| Phase: | 1 | Duty: | Continuous Air Over |
| Insulation Class: | B | Frame: | C-FRAME |
| Enclosure: | Open Air Over | Thermal Protection: | Automatic |
| Ambient Temperature: | 40 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Induction Run |
| Poles: | 2 | Rotation: | Counterclockwise |
| Mounting: | Bracket | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Shaft Diameter: | 0.217 in |
| Shaft Extension: | 1.2 in |
