Product Overview

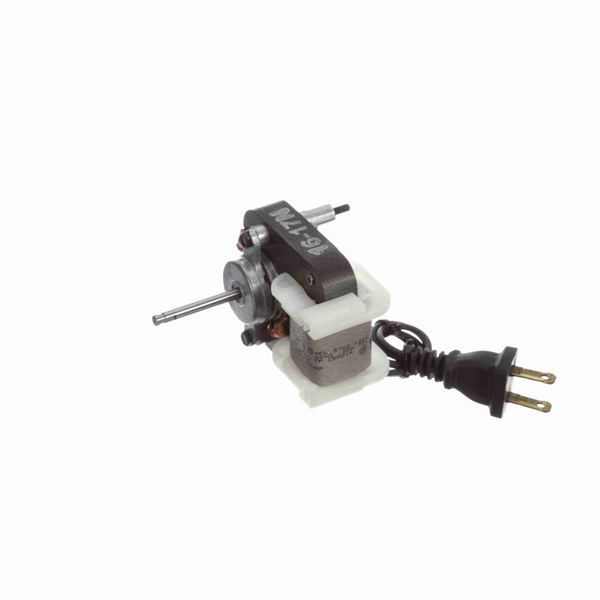

Century CBR216 1/2" Stack C-Frame / Skeleton Motor 3000 RPM 120 Volts
KEY FEATURES
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation
- Sleeve Bearing
- .181" Diameter Shaft with Flat
- 8.5" Leads with Molded Plug
- Extended Studs Opposite Shaft End
- Downloads:
- CBR216 Data Pack
General Specifications
| UPC: | 786674051455 | Weight: | 1.00 LB |
| Packaged Length: | 14.5 IN | Packaged Width: | 6.5 IN |
| Packaged Height: | 6.5 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/2" STACK Hp | Frequency: | 60 Hz |
| Voltage: | 120 V | Current: | 0.8 A |
| Speed: | 2850 rpm | Service Factor: | 1 |
| Phase: | 1 | Duty: | Continuous Air Over |
| Insulation Class: | B | Frame: | C-FRAME |
| Enclosure: | Open Air Over | Thermal Protection: | No Protection |
| Ambient Temperature: | 40 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Induction Run |
| Poles: | 2 | Rotation: | Clockwise Shaft End |
| Mounting: | Bracket | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat & Groove | Overall Length: | 3.52 in |
| Shaft Diameter: | 0.181 in | Shaft Extension: | 1.3 in |
