Product Overview

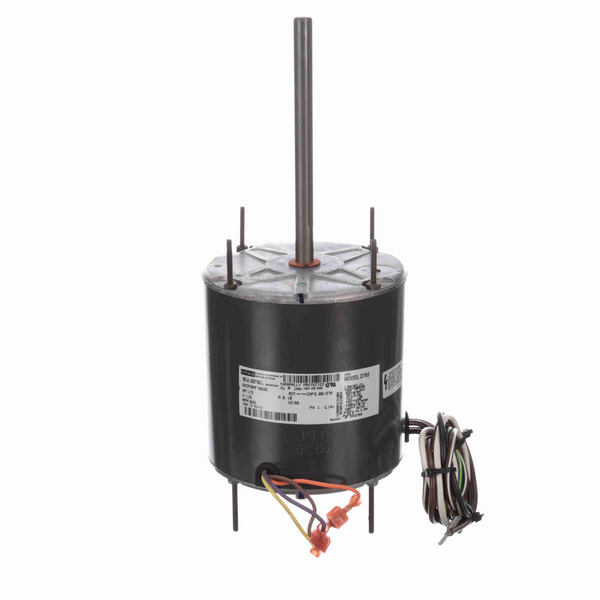

Fasco D795 OEM Replacement Motor 1/3 HP 1 Ph 60 Hz 115 V 825 RPM 1 Speed
KEY FEATURES
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount
- Downloads:
- D795 Data Pack
General Specifications
| UPC: | 818508020389 | Weight: | 15.60 LB |
| Packaged Length: | 14.06 IN | Packaged Width: | 6.04 IN |
| Packaged Height: | 6.02 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/3 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 6.10 A | Speed: | 825 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 60 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Poles: | 8 |
| Rotation: | Reversible | Mounting: | Extended Studs |
| Motor Orientation: | Any | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Double Flat | Overall Length: | 12.23 in |
| Frame Length: | 5.07 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 6.42 in | Thru-bolts Extension: | 1.13 in |
