Product Overview

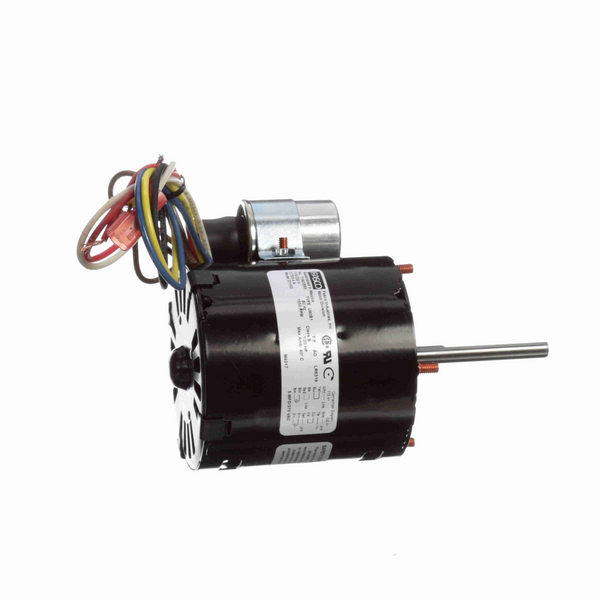

Fasco D1102 OEM Replacement Motor 1/20 HP 1 Ph 60 Hz 115/230 V 1550 RPM 1 Speed
KEY FEATURES
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads with Molded Plug
- Extended Studs Shaft End, Belly Band
- Downloads:
- D1102 Data Pack
General Specifications
| UPC: | 815585028185 | Weight: | 4.00 LB |
| Packaged Length: | 11 IN | Packaged Width: | 5.5 IN |
| Packaged Height: | 4.56 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/20 Hp | Output KW: | 0.04 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 0.75/0.40 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 6.41 in |
| Frame Length: | 3.24 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 2.70 in |
