Product Overview

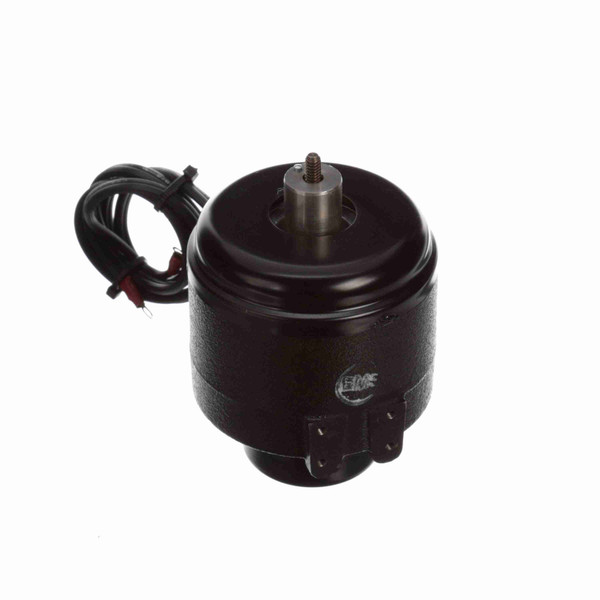

Century 9221 50 WATT Refrigeration Motor 1500 RPM 208/230 Volts Unit Bearing
KEY FEATURES
- OEM Direct Replacement Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 35" Leads with #10 Ring Terminals
- Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
Nameplate Specifications
| Phase: | 1 | Output Watts: | 50 W |
| Voltage: | 208/230 V | Speed: | 1500 rpm |
| Service Factor: | 1 | Frame: | UNIT BEARING |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | .85 A | Duty: | Continuous |
| Insulation Class: | A | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Lead End |
| Mounting: | 2 BOSS/OSE 3 HOLES | Drive End Bearing: | Unit |
| Opp Drive End Bearing: | Unit | Frame Material: | Cast Iron |
| Shaft Type: | Threaded | Frame Length: | 5.19 in |
| Shaft Diameter: | 1/4x20 in | Shaft Extension: | 0.4 in |
General Specifications
| UPC: | 786674071385 | Weight: | 14.00 LB |
| Packaged Length: | 8.59 IN | Packaged Width: | 6.87 IN |
| Packaged Height: | 6.87 IN |
