Product Overview

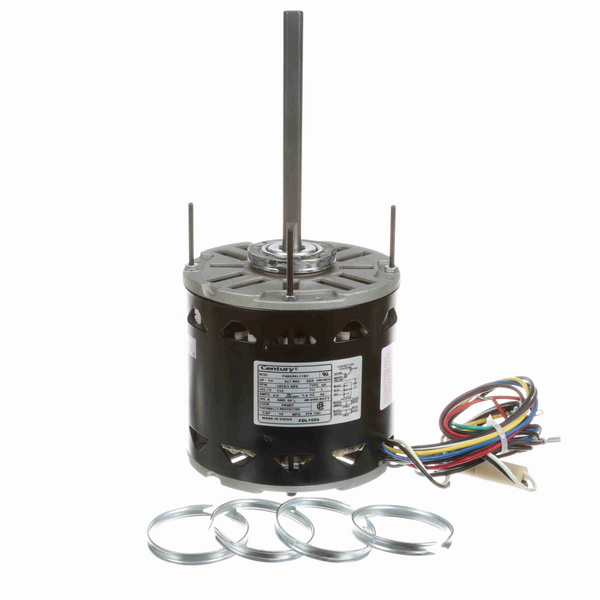

Century FDL1056 1/2 HP Fan & Blower Motor 1075 RPM 3 Speed 115 Volts
KEY FEATURES
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 50°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
- Downloads:
- FDL1056 Data Pack
General Specifications
| UPC: | 786674020611 | Weight: | 17.00 LB |
| Packaged Length: | 13.78 IN | Packaged Width: | 6.41 IN |
| Packaged Height: | 6.81 IN |
Nameplate Specifications
| Output HP: | 1/2 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 5.6 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 65 % | Duty: | Air Over |
| Insulation Class: | A | Frame: | 48Y |
| Enclosure: | Open Air Over | Thermal Protection: | Automatic |
| Ambient Temperature: | 50 °C | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Resilient Rings | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 12.05 in | Frame Length: | 4.50 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.5 in |
