Product Overview

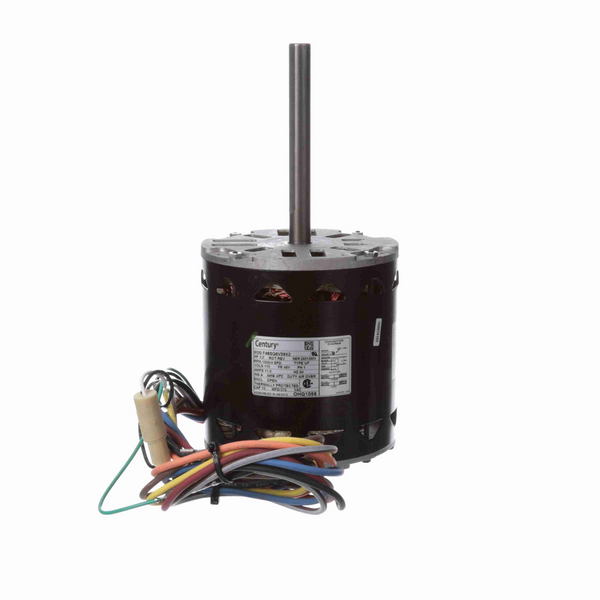

Century OHQ1056 OEM Replacement Motor 1/2 HP 1 Ph 60 Hz 115 V 1050 RPM 4 Speed 48 Frame
KEY FEATURES
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat
- 24" Leads with Female Spade Terminals
- Belly Band Mounting
- Downloads:
- OHQ1056 Data Pack
General Specifications
| UPC: | 786674027634 | Weight: | 19.00 LB |
| Packaged Length: | 14.18 IN | Packaged Width: | 7.25 IN |
| Packaged Height: | 7.37 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/2 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 11.0 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | A |
| Frame: | 48Y | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 4 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Round Belly Band | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 11.36 in | Frame Length: | 5.25 in |
| Shaft Diameter: | 0.625 in | Shaft Extension: | 5/8X5 1/2 in |
