Product Overview

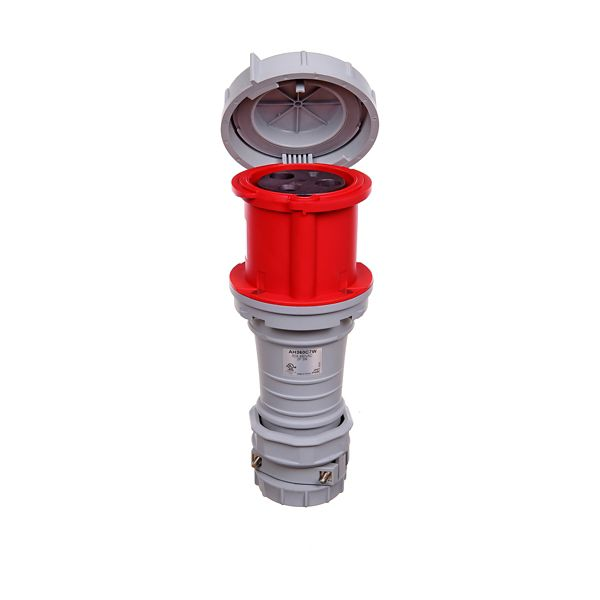

Eaton Wiring Devices AH360C7W Conn Pin&Sleeve 60A 480V 2P3W WT RD
Eaton Arrow hart pin and sleeve connector, IP69K Rated, #8-#2 AWG, #10-#2 AWG (Ground), #12-#16 AWG (Pilot), 60A, 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 2-pole, 3-wire, grounding, 0.66-1.5in (1.68-3.81cm), Female, Nylon
Eaton's Arrow Hart full line of pin and sleeve devices offer sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance, and watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.
| Allowable Wire Size | #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot) |
| Amperage Rating | 60A |
| Application | Industrial, food and beverage, wastewater treatment |
| Color | Red |
| Contact Material | Nickel plated brass |
| Cord Diameter | 0.66-1.5in (1.68-3.81cm) |
| Design Type | Pin and sleeve connector |
| Device grade | Extra Heavy-Duty |
| Environmental Resistance | IP67 | IP69K |
| Face/Body Material | Nylon |
| Gender | Female |
| Material | Nylon |
| Number Of Poles | Two-pole |
| Number Of Wires | Grounding | 3 | Three-wire |
| Special features | IP69K Rated |
| Torque rating | 28 lbf-inch |
| Type | Connector |
| Voltage Rating | 480 V |
| Wiring method | Back wire |
| Length | 11.5 IN |
| Width | 5.125 IN |
| Height | 5.125 IN |
| Volume | 302.055 CI |
| Weight | 2.015 LB |
| Length | 11.5 IN |
| Width | 5.125 IN |
| Height | 5.125 IN |
| Weight | 2.015 LB |
