Product Overview

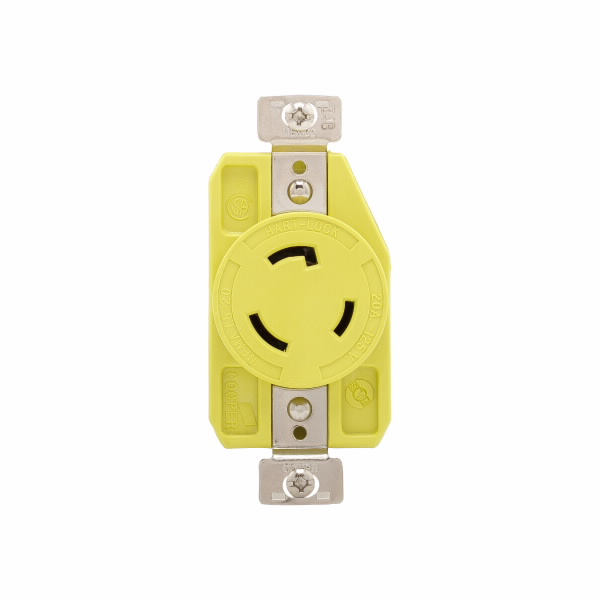

Eaton Wiring Devices CRL520R Recp Single CR 20A 125V 2P3W H/L YL
Eaton corrosion resistant locking receptacle, #14-10 AWG, 20A, Industrial, 125V, Back and side wiring, Yellow, Single, Corrosion resistant, L5-20, Two-pole, Three-wire, Thermoplastic
Corrosion Resistant locking devices and NEMA straight blades
| Allowable Wire Size | #14-10 AWG |
| Amperage Rating | 20 A |
| Application | Industrial |
| Color | Yellow |
| Contact Material | Nickel plated brass |
| Design Type | Single receptacle |
| Device Grade | Extra heavy-duty industrial specification grade |
| Environmental Conditions | Corrosion resistant |
| Environmental Resistance | Corrosion resistant |
| Face/Body Material | Glass filled Nylon |
| Material | Thermoplastic |
| Nema Configuration | L5-20 |
| Number Of Gangs | Single-gang |
| Number Of Poles | Two-pole |
| Number Of Wires | Grounding | 3 |
| Operating Temperature | -20 to 70 °C (-4 to 158 °F) |
| Receptacle Type | Locking |
| Special Features | Corrosion resistant |
| Torque rating | 20 lbf-inch |
| Type | Locking receptacle |
| Voltage Rating | 125 V |
| Wiring Method | Back and side |
| Length | 1.91 IN |
| Width | 1.78 IN |
| Height | 4.13 IN |
| Volume | 14.041 CI |
| Weight | 0.25 LB |
| Length | 1.91 IN |
| Width | 1.78 IN |
| Height | 4.13 IN |
| Weight | 0.25 LB |
