Product Overview

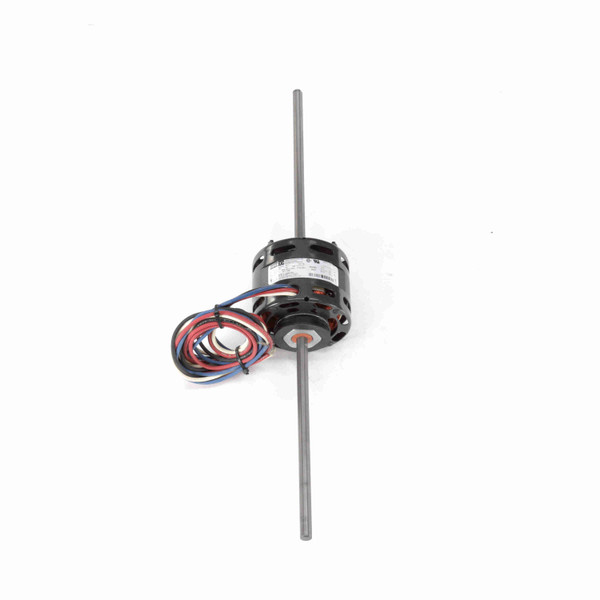

Fasco D635 Fan Coil & Air Conditioner Motor 1/10-1/20-1/35 HP 1 Ph 60 Hz 230 V 1550 RPM 3 Speed 4.4" Diameter
KEY FEATURES
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 60" Leads
- Resilient Mounting Ring Lead End and Opposite Lead End
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/10-1/20-1/35 Hp |
| Output KW: | 0.07 kW | Voltage: | 230 V |
| Speed: | 1550 rpm | Service Factor: | 1 |
| Frame: | 4.4 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 1.8-1.3-1.0 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Resilient Rings | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 23.38 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 10 in |
General Specifications
| UPC: | 818508021096 | Weight: | 8.20 LB |
| Packaged Length: | 4.38 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 25 IN | Country of Origin: | Mexico |
