Product Overview

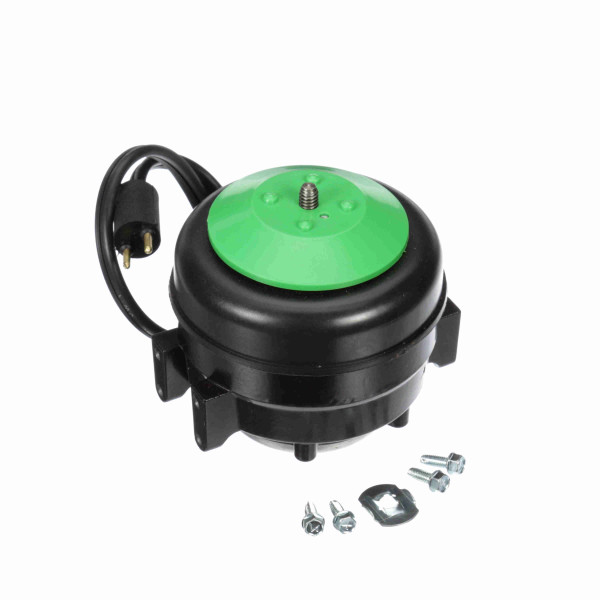

Morrill Motors 5R020 ARKTIC SSC 16 WATT Refrigeration Motor 1550 RPM 115 Volts Unit Bearing
KEY FEATURES
- ARKTIC SSC - Refrigeration Motor
- Unit Bearing
- Electronically Commutated (ECM)
- Electronically Protected
- Totally Enclosed Air Over
- Class B Insulation
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 15" Leads with Molded Plug
- Tapped Double Boss, 5 Cored Holes Opposite Shaft End
Nameplate Specifications
| Phase: | 1 | Output Watts: | 16 W |
| Voltage: | 115 V | Speed: | 1550 rpm |
| Frame: | UNIT BEARING | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 55 °C |
| Frequency: | 60 Hz | Current: | 0.4 A |
| Duty: | Continuous Air Over | Insulation Class: | B |
| UL: | Yes | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Electronically Commutated Motor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Opposite Shaft End |
| Mounting: | 2 BOSS/OSE 5 HOLES | Motor Orientation: | Any |
| Frame Material: | Aluminum | Shaft Type: | 1/4-20 THREAD |
| Overall Length: | 3.85 in | Frame Length: | 3.52 in |
| Shaft Diameter: | 0.250 in | Shaft Extension: | 0.33 in |
General Specifications
| UPC: | 815585024828 | Weight: | 2.08 LB |
| Packaged Length: | 4 IN | Packaged Width: | 4 IN |
| Packaged Height: | 6 IN | Country of Origin: | Mexico |
