Product Overview

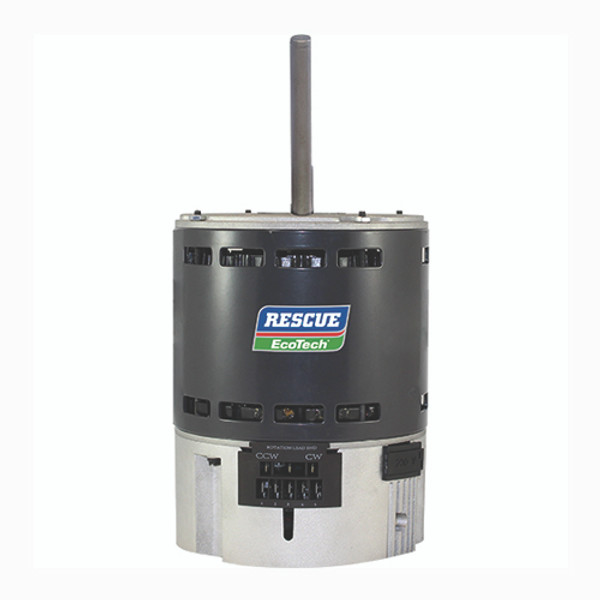

US Motors 5542ET RESCUE EcoTech ECM 1075 RPM .75 HP 5.6" Direct Drive Blower Motor
- RESCUE® EcoTech™ ECM
- 5.6" Dia. Direct Drive Blower
- PSC to ECM Upgrade
- Continuous Low Fan speed option
- Reversible Rotation Dual voltage
| Model_Number: | M055TYM0077015B |
| PRODUCT NAME: | .75 HP - OPAO - 1075 |
| PHASETYPE: | 1_BRUSHLESS PERMANEN |
| MOTOR ENCLOSURE: | OPAO |
| HORSEPOWER: | .75 |
| KILOWATTS: | 0.6 |
| POLES: | 10 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1075 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 115/208-230 V |
| VOLTS : | 115 |
| VOLTS 2: | 208 |
| VOLTS 3: | 230 |
| FRME : | 48 |
| SHAFT CODE: | Y |
| STACK: | 1.55 |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SHIPPING WEIGHT: | 15 |
| THERMAL PROTECTION: | ELECTRONICALLY PROTECTED MOTOR |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| FULL LOAD AMPS PRIMARY: | 9.6/6.2-5.6&9.6/6.1-5.7 |
