Product Overview

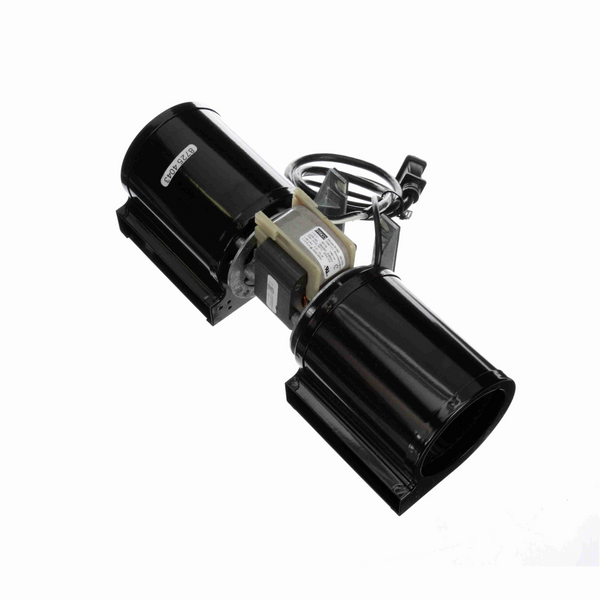

Fasco B160 Rectangular Outlet Shaded Pole Centrifugal Blower 115 Volts
KEY FEATURES
- Centrifugal Blower
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 28-26" Lead with Plug
General Specifications
| UPC: | 815585026938 | Weight: | 23.00 LB |
| Packaged Length: | 15 IN | Packaged Width: | 6 IN |
| Packaged Height: | 4.5 IN | Country of Origin: | United States of America |
Nameplate Specifications
| Voltage: | 115 V | Motor Type: | Shaded Pole |
| Thermal Protection: | Thermally | Speed: | 3000 rpm |
| Current: | 1.13 A | Number of Speeds: | 1 |
| Frequency: | 60 Hz | Phase: | 1 |
| Ambient Temperature: | 40 °C | UL: | Yes |
| Insulation Class: | B | CSA: | No |
Technical Specifications
| Blower Outlet Shape: | Rectangle | Motor Enclosure: | Open |
| Blower Outlet Flange: | No | Bearing Type: | Sleeve |
CPM at Static Pressure
| 0.0: | 150 | 0.1: | 135 |
| 0.2: | 130 | 0.3: | 115 |
| 0.4: | 100 | 0.5: | 75 |
| 0.6: | 20 |
