Product Overview

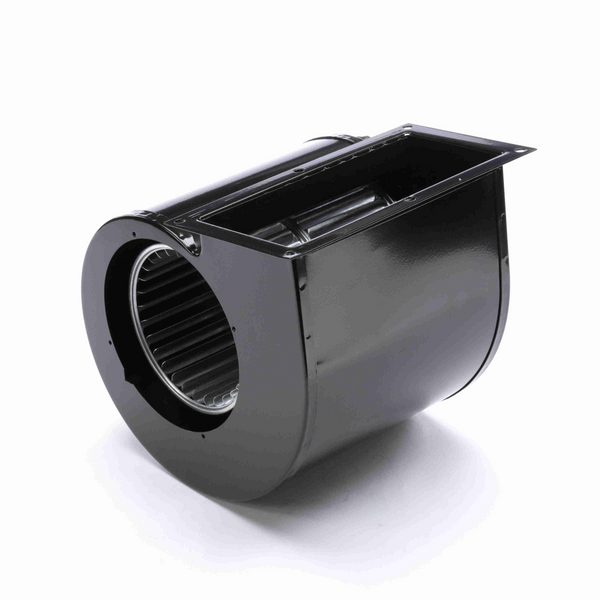

Fasco B45230 Rectangular Outlet Shaded Pole Centrifugal Blower 230 Volts
KEY FEATURES
- Centrifugal Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 20-18" Leads with Strip
General Specifications
| UPC: | 815585027065 | Weight: | 9.60 LB |
| Packaged Length: | 10.63 IN | Packaged Width: | 10.38 IN |
| Packaged Height: | 8.88 IN | Country of Origin: | United States of America |
Nameplate Specifications
| Voltage: | 230 V | Motor Type: | Shaded Pole |
| Thermal Protection: | Thermally | Speed: | 1600 rpm |
| Current: | 1.4/1.2 A | Number of Speeds: | 2 |
| Frequency: | 50/60 Hz | Phase: | 1 |
| Ambient Temperature: | 40 °C | UL: | Yes |
| Insulation Class: | B | CSA: | Yes |
Technical Specifications
| Blower Outlet Shape: | Rectangle | Motor Enclosure: | Open |
| Blower Outlet Flange: | Yes | Bearing Type: | Sleeve |
CPM at Static Pressure
| 0.0: | 460 | 0.1: | 393/356 |
| 0.2: | 359/331 | 0.3: | 318/297 |
| 0.4: | 254/240 | 0.5: | 187/167 |
| 0.6: | 64/58 |
